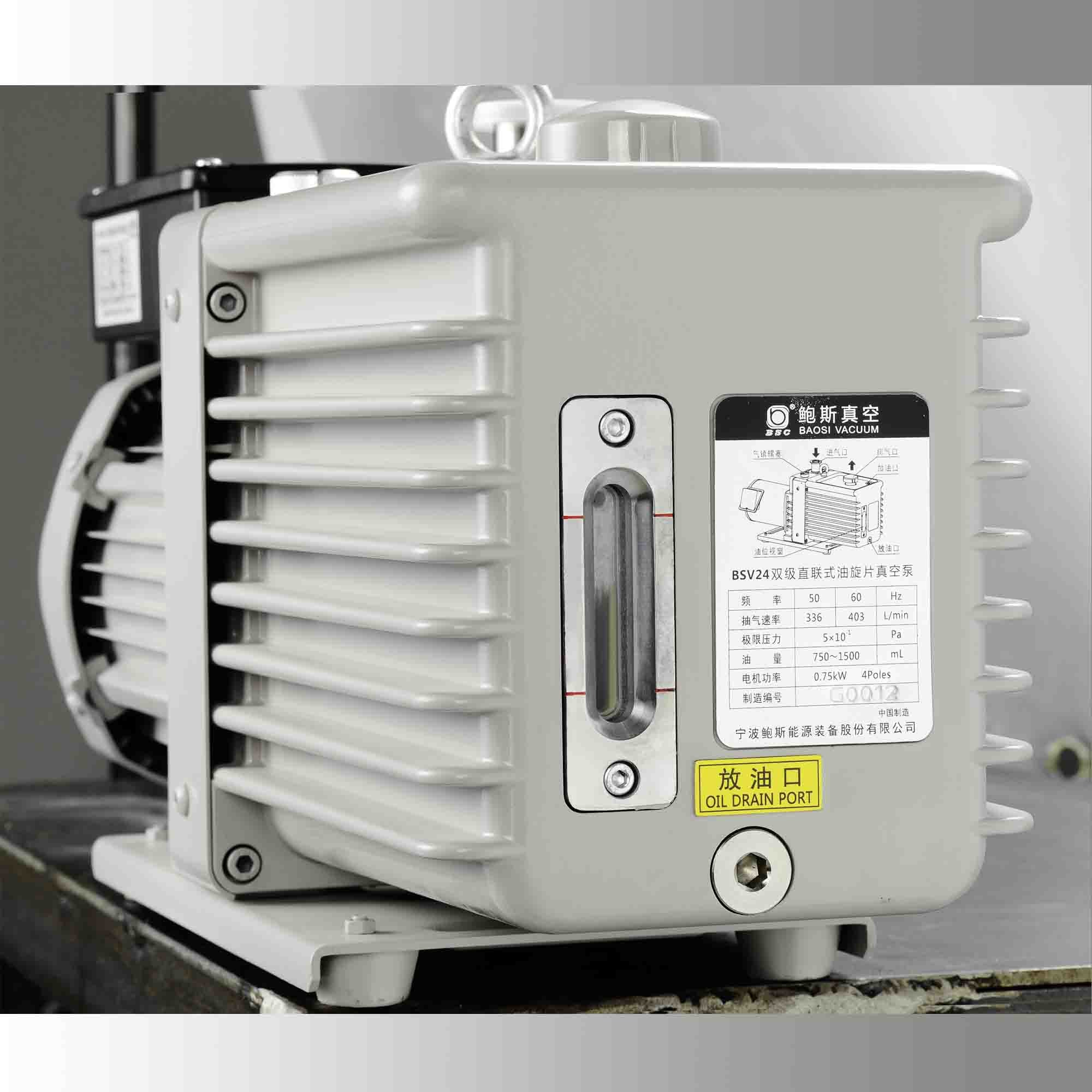

BSV24 Oil Lubricated 2 Stage Rotary Vane Vacuum Pump, 6 L/s Industrial Vacuum Pumps

Basic Information
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: BSV24
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Surface: Painting Color: Army Green
Speed: 20 CBM/h Ultimate Vacuum: 0.5 Pa
Noise Level: 65 DB(A) Motor Power: 0.75 KW
Voltage: 220V/single Phase And 380V/3 Phase Are Both Aviliable
High Light:

vane type vacuum pump

,

rotary vacuum pump

BSV24 Double Stage Oil-lubricated Rotary Vane Vacuum Pump with 6L/s



The rotary vane technology enables a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is guaranteed through circulating oil lubrication, perfectly coordinated materials and state-of-the-art and precise manufacturing. The standard oil separator ensures clean and oil-free exhaust thanks to its sophisticated extractor system with integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapour can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.



​Technical Data

  Units BSV24
Pumping Rate 50 Hz m³h-1 / Lmin-1 20/336
60 Hz 24/403
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet KF40
Outlet KF40
Oil Needs litre 3
Noise Level dB 65



Performance Curve

BSV24 Oil Lubricated 2 Stage Rotary Vane Vacuum Pump, 6 L/s Industrial Vacuum Pumps



Dimensions



BSV24



BSV24 Oil Lubricated 2 Stage Rotary Vane Vacuum Pump, 6 L/s Industrial Vacuum Pumps





Application



Vacuum metallurgy

Thin film coating

Freeze drying
