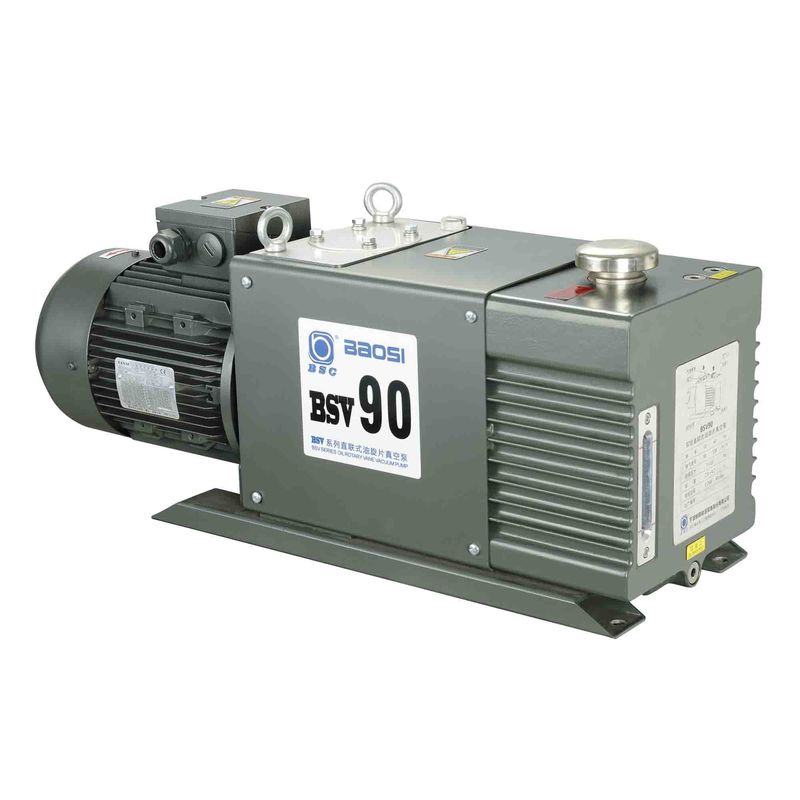

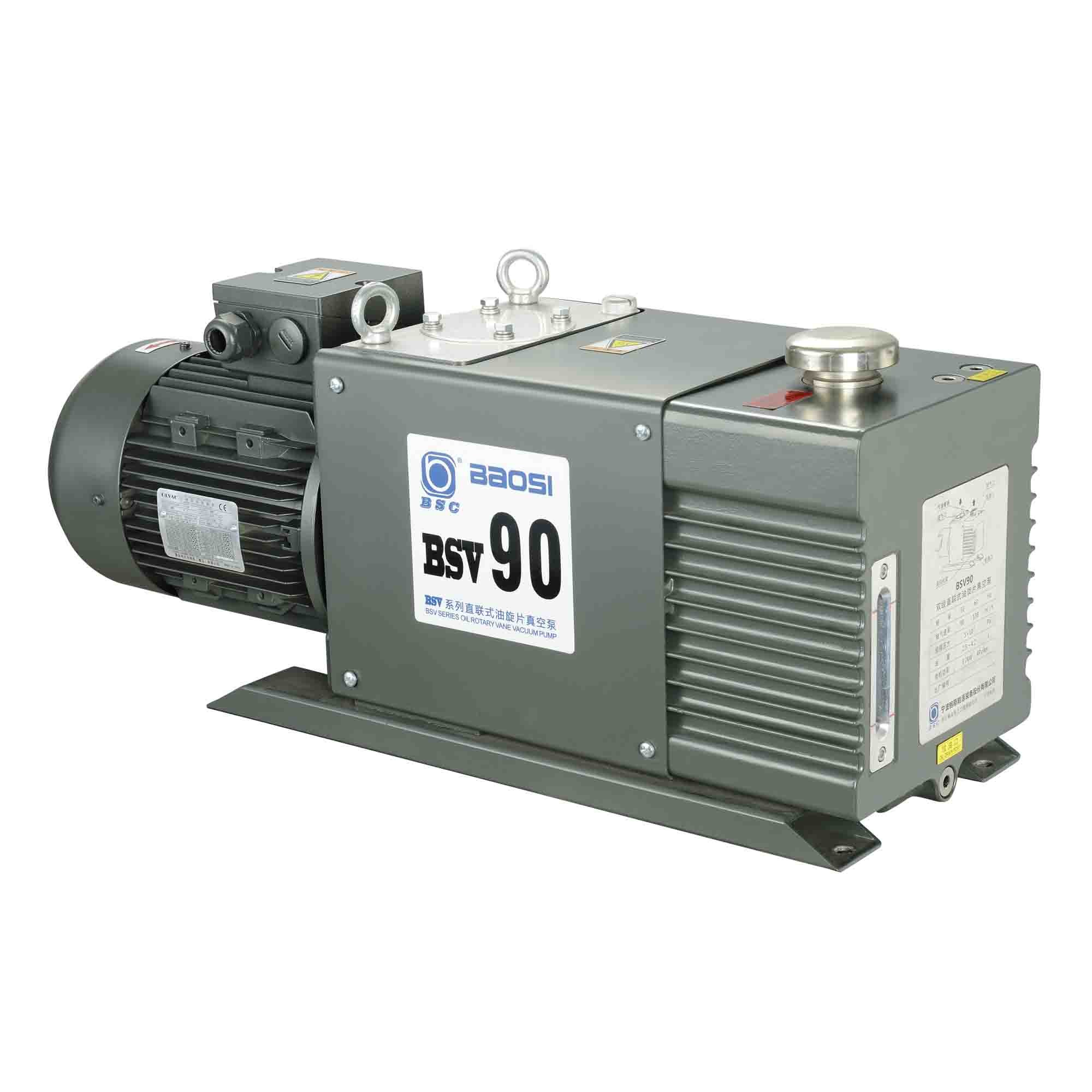

BSV90 90m3/H 2 Stage Vacuum Pump / Industrial Vacuum Pumps CE Certification

Basic Information
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: BSV90
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 1000 sets per month
Surface: Painting Color: Army Green
Speed: 90 CBM/h Ultimate Vacuum: 0.5 Pa
Noise Level: 65 DB(A) Product Name: Rotary Vacuum Pump
High Light:

mechanical vacuum pump

,

rotary vacuum pump

BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System



When the ambient temperature range is under 40 ℃, the air inlet pressure is less than 1300 Pa. It's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, the gas ballast valve should be opened.



​Technical Data



  Units BSV90
Pumping Rate 50 Hz m³h-1 / Lmin-1 90/1500
60 Hz 108/1800
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet KF40
Outlet KF40
Oil Needs litre 4
Noise Level dB 65



Application



Vacuum metallurgy

Thin film coating

Freeze drying



Performance Curve





BSV90 90m3/H 2 Stage Vacuum Pump / Industrial Vacuum Pumps CE Certification



Dimensions



BSV60[90]



BSV90 90m3/H 2 Stage Vacuum Pump / Industrial Vacuum Pumps CE Certification
