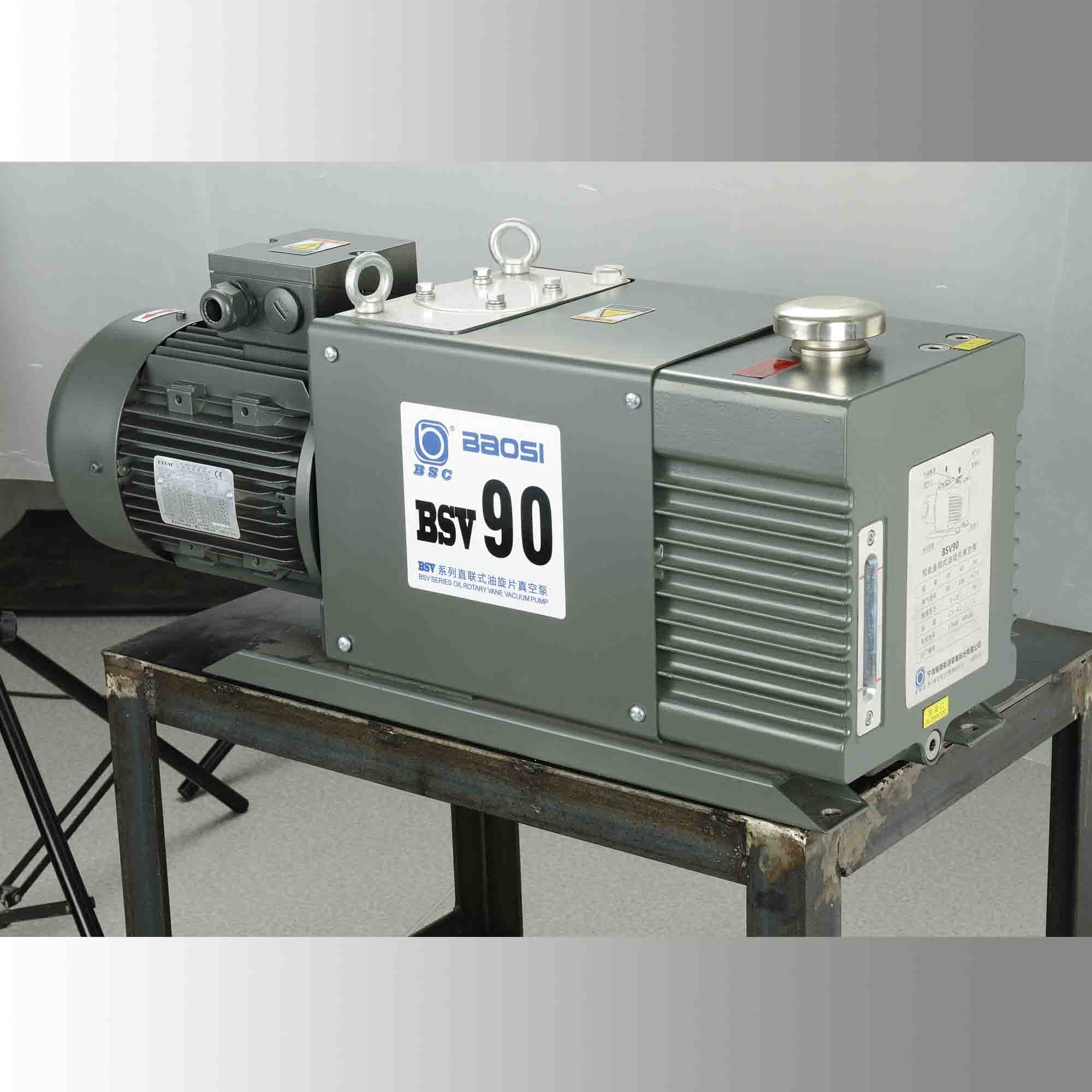

Double Stage Oil Sealed Rotary Vane Vacuum Pump Low Noise 90 CBM/H Speed

Basic Information
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: BSV90
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 1000 sets per month

BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System



When the ambient temperature range is under 40 ℃, the air inlet pressure is less than 1300 Pa. It's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, the gas ballast valve should be opened.



​Technical Data



  Units BSV90
Pumping Rate 50 Hz m³h-1 / Lmin-1 90/1500
60 Hz 108/1800
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet KF40
Outlet KF40
Oil Needs litre 4
Noise Level dB 65



Performance Curve



Double Stage Oil Sealed Rotary Vane Vacuum Pump Low Noise 90 CBM/H Speed



Dimensions



BSV60[90]



Double Stage Oil Sealed Rotary Vane Vacuum Pump Low Noise 90 CBM/H Speed





Application



Vacuum metallurgy

Thin film coating

Freeze drying
