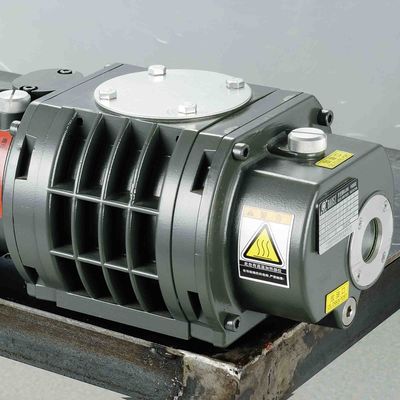

Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm

Name: Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: BSJ30L
Price: 1920 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	BSJ30L

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

BSJ30L

Features:

Corrosion Resistance

Surface:

Painting

Color:

Army Green

Pumping Rate:

100 M3/h(1667L/min)

Material:

Aluminium Alloy

G.W.:

30kgs

N.W.:

29kgs

Meas.:

65*34*24cm

Pumping Rate:

95 M³/h (50Hz) / 115 M³/h (60Hz)

N.W.:

30 Kg

Motor Power:

0.4 KW

Oil Capacity:

0.4 L

Inlet:

VG50

Outlet:

VF50

Highlight:

High Light

Highlight:

roots blower pump

industrial roots blower

Trading Information

Minimum Order Quantity:

1 set

Price:

USD 1920 per set

Packaging Details:

Carton

Delivery Time:

5-30 days

Payment Terms:

T/T

Supply Ability:

1000 sets per month

Product Description

30L/s (100m³/h) 0.4kW Mechanical Army Green Booster Pump,Roots Pump BSJ30L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

Technical Parameter :

Model	BSJ30L
Pumping speed	95 m³/h (50Hz) / 115 m³/h (60Hz)
Motor power	0.4 kW
Oil capacity	0.4 L
Inlet	VG50
Outlet	VF50
Cooling Method	Water cooled
Ambient Temp.	5~40
Vacuum Pump Oil	BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10^-3 if the Mcleod gauge is used.

Performance Curve:

Dimensions:

Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm

Applications

Vacuum distillation
Vacuum packaging
Thin film coating
Freez drying
Electrical engineering
Printing
Surface treatment technique
Wind Energy
Ceramics and glasses

We provide you with individual support,we train you and we offer 24/7 service worldwide.
