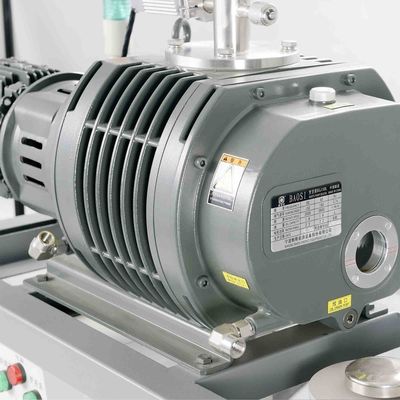

500 M³/H Oil Free Roots Type Blower High Clean Vacuum Corrosion Resistance

Place of Origin China
Brand Name BSC
Certification CE
Model Number BSJ150L
Minimum Order Quantity 1 set
Price USD 2730 per set
Packaging Details wooden box
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance Surface Painting
Color Army Green Pumping Rate 600 M3/h(1000L/min)
Material Aluminium Alloy G.W. 95kgs
N.W. 82kgs Meas. 102*50*50cm
High Light

roots blower pump

,

industrial roots blower

Leave a Message
Product Description

500m³/h Mechanical Booster Pump, Roots Pump BSJ150L



Description :



Roots vacuum pumps, which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.



Characteristics:



  • The use of oil-free intermediat seal, multiple sealed way to ensure the high clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.





​Technical Parameter :



Model Units BSJ150L
Pumping Rate 50 Hz m³h-1 / Lmin-1 500/8330
60 Hz 600/10000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103



Ultimate Vacuum



Pa/ mbar



0.04/4×10-4



Motor Power kW(hp) 2.2(3.0)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 1.6
Ambient Temp. 5~40
Weight -- BSO-46



Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.





Performance Curve:



500 M³/H  Oil Free Roots Type Blower High Clean Vacuum Corrosion Resistance 0





Dimensions:



500 M³/H  Oil Free Roots Type Blower High Clean Vacuum Corrosion Resistance 1



500 M³/H  Oil Free Roots Type Blower High Clean Vacuum Corrosion Resistance 2



Applications



  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
