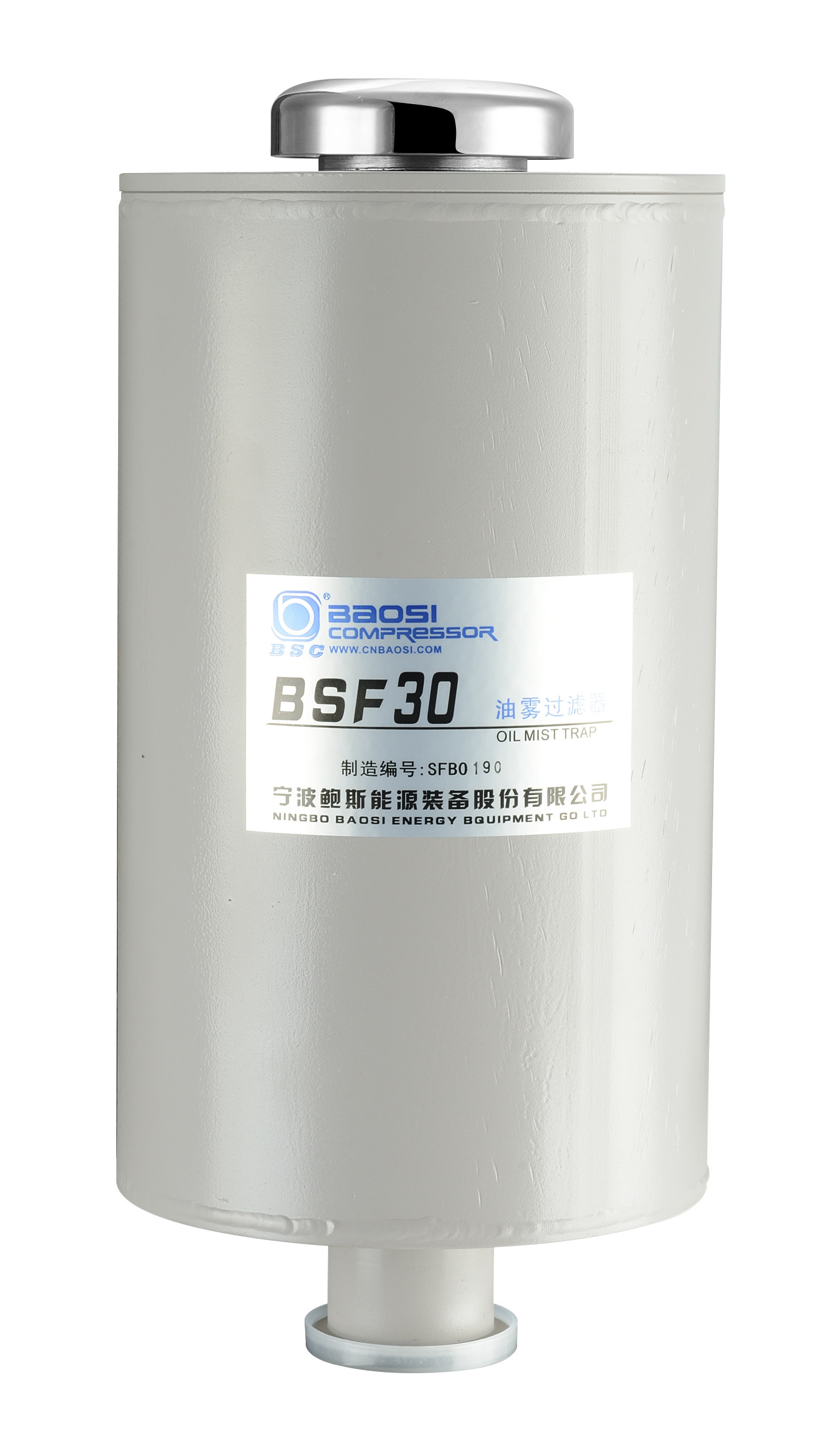

Fiberglass Oil - Return Valve Type Oil Mist Filter , Rotary Vane Pump Oil Mist Trap

Place of Origin CHINA
Brand Name BAOSI
Certification ISO9001,ISO14001,CE,OHSAS18001
Model Number BSF30
Minimum Order Quantity 1
Price $
Packaging Details Carton
Payment Terms T/T
Product Details
Model BSF 30 Filter Specification 30L
Baosi Pump BSV30/BSV40/BSV60/BSV90 Max Processing Flow 108 M³/h
Filter Element Fiberglass Shell Material Steel
High Light

oil mist eliminator

,

oil mist eliminator filter

Leave a Message
Product Description

BSF10 oil mist filter with oil-return valve to save cost of oil loss for rotary vane pump





Description:



When the oil rotary vacuum pump is operated at atmospheirc pressure or under low vacuum,the oil will be discharged together with the gas which has been pumped.



This kind of exhaust gas is composed of many tiny oil droplets and exhausted in the form of smoke through the pump outlet.



The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.





Application :



Used with oil rotary vacuum pump or vacuum system.



Parameter:



Model BSF30
Filter Specification 30L
Maximum Processing Flow m³/h(L/s) 108(30)
Inlet KF40
Outlet M50*1.5
Pump

BSV30/BSV40(high load)

BSV60/BSV90(underload)

Weight(kg) 7.4











































Outline Drawing:



Fiberglass Oil - Return Valve Type Oil Mist Filter , Rotary Vane Pump Oil Mist Trap 0Fiberglass Oil - Return Valve Type Oil Mist Filter , Rotary Vane Pump Oil Mist Trap 1
