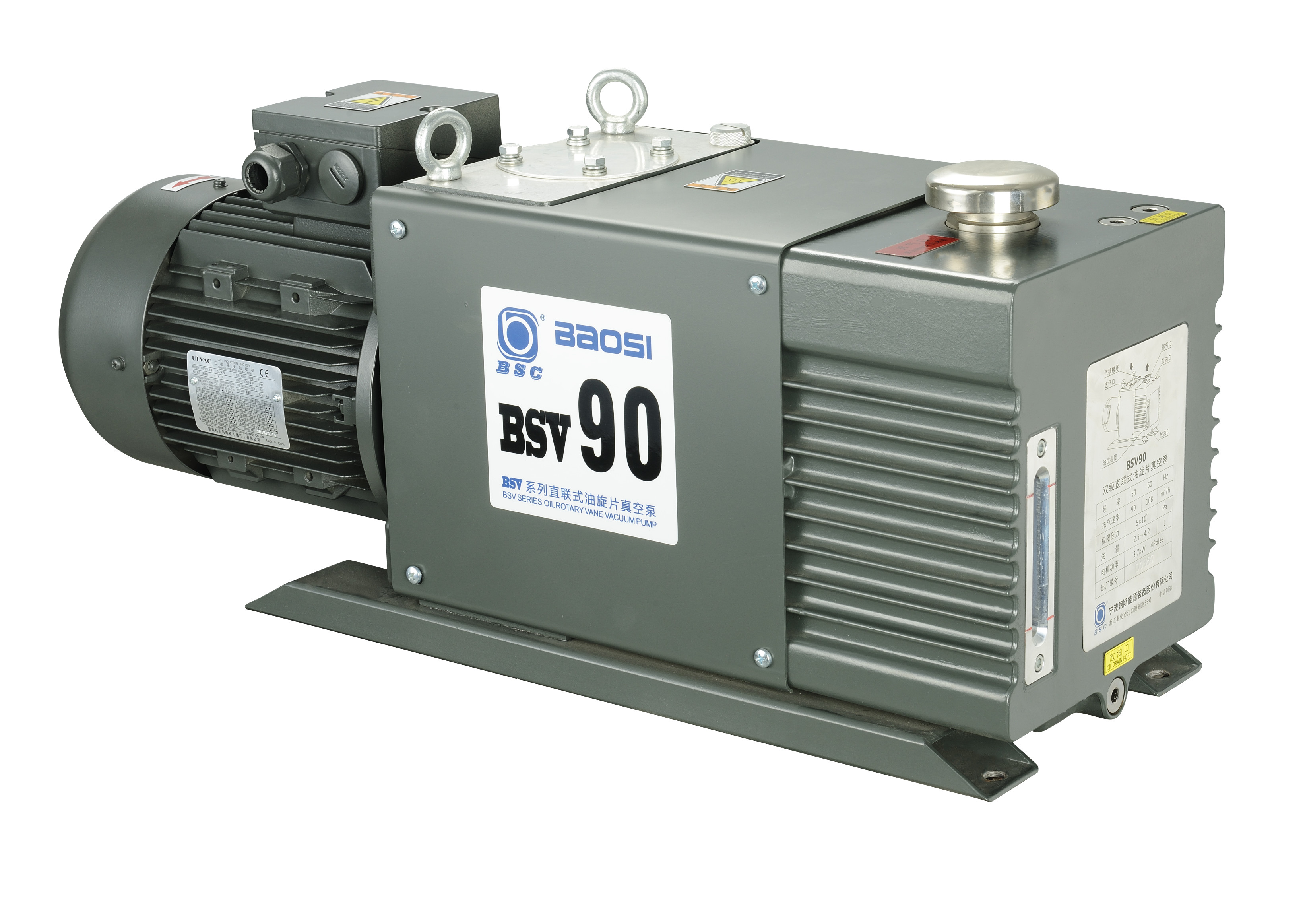

BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System

Place of Origin China
Brand Name BSC
Certification CE
Model Number BSV90
Minimum Order Quantity 1 set
Price Negotiate
Packaging Details wooden box
Delivery Time 5-10 days
Payment Terms T/T
Supply Ability 1000 sets per month
Product Details
Surface Painting Color Army Green
Speed 90 CBM/h Ultimate Vacuum 0.5 Pa
Noise Level 65 DB(A) Product Name Rotary Vacuum Pump
High Light

vane type vacuum pump

,

mechanical vacuum pump

Leave a Message
Product Description

BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System



When the ambient temperature range is under 40 ℃, the air inlet pressure is less than 1300 Pa. It's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, the gas ballast valve should be opened.



​Technical Data



  Units BSV90
Pumping Rate 50 Hz m³h-1 / Lmin-1 90/1500
60 Hz 108/1800
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet KF40
Outlet KF40
Oil Needs litre 4
Noise Level dB 65



Performance Curve



BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System 0



Dimensions



BSV60[90]



BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System 1





BSV90 (90m3/h) Double Stage Oil Sealed Rotary Vane Vacuum Pump for SF6 Recovery System 2

Application



Vacuum metallurgy

Thin film coating

Freeze drying
