| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | GFF600 |
| Minimum Order Quantity: | 1 |
| Price: | 1 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7 working days |
| Supply Ability: | 500 Units per month |
| Cooling Method: | Water Cooled | Pumping Speed: | 600 L/s |
|---|---|---|---|
| Ultimatre Pressure: | 8E-8 Pa | Heater Voltage: | AC220V |
| High Light: | turbo vacuum pump,high vacuum pump |
||

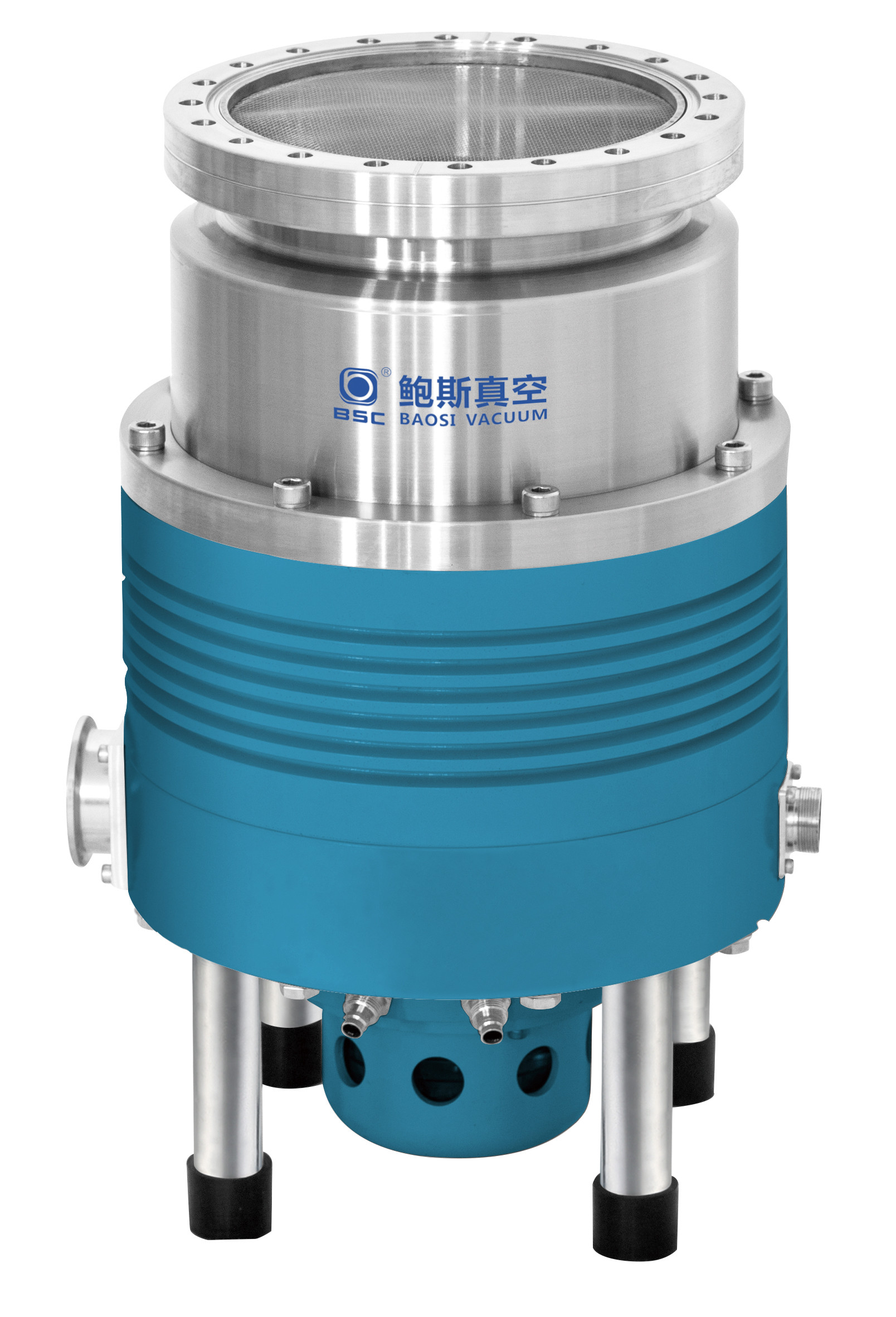

BAOSI VACUUM GFF600 Water-cooled Hybrid Molecular Vacuum Pump
application:
It’s widely used in photovoltaics, lighting, aerospace, semiconductor, energy, military, laser, appliances, materials, automobiles and other vacuum technology in various fields.
TECHNICAL PARAMETER
| Model | GFF600 | ||
| Inlet flange | - | LF160 | CF150 |
| Outlet flange | - | KF40 | |
| Pumping speed | L/s | 600 | |
| Compression ratio N2/H2 | - | 1×109/8×103 | |
| Ultimate pressure | Pa | 5×10-7 | 8×10-8 |
| Rotation speed | rpm | 24000 | |
| Run-up time | min | ≤4.5 | |
| Vibration | μm | ≤0.1 | |
| Forevacuum pump speed | L/s | 4-8 | |
| Cooling water temperature | ≤20 | ||
| Cooling water flow | L/s | 1 | |
| Heater power | W | ＜550 | |
| Heater voltage | V | AC220 | |
| Installation direction | - | Vertical ±5o | |
| Weight | kg | 29 | |
