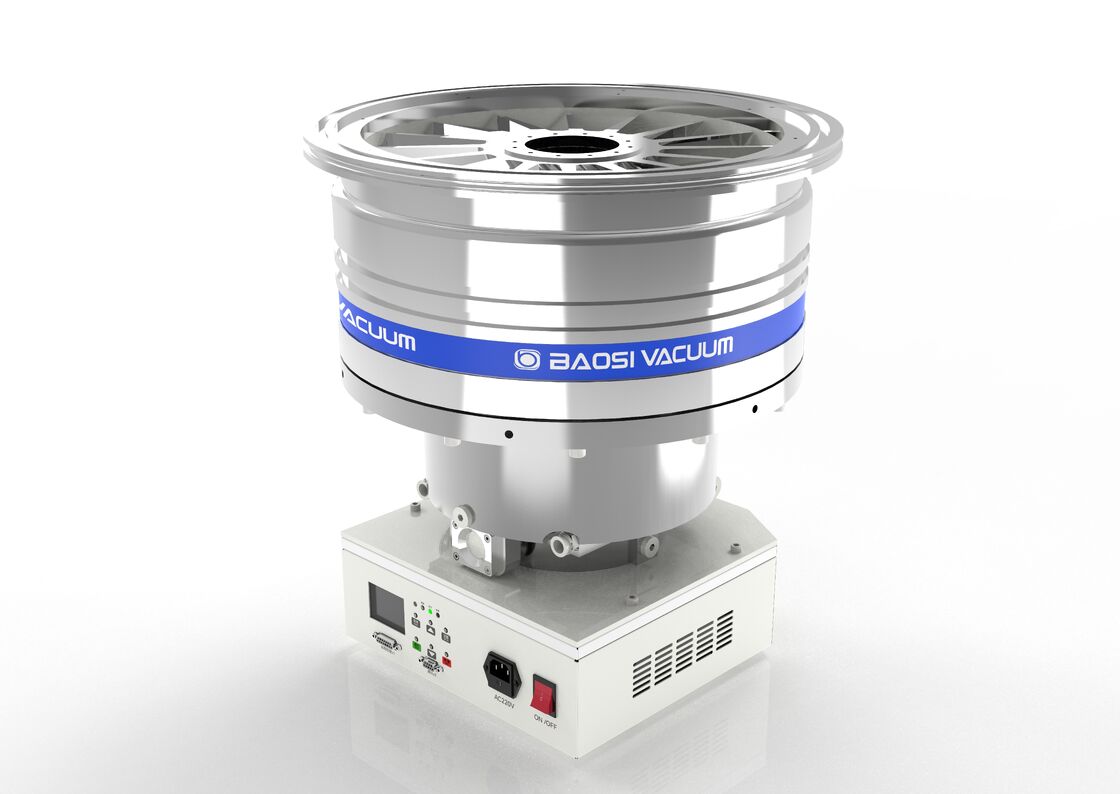

High performance water cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM

Name: High performance water cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: DFFY 400/4500PM
Price: 1 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	BSC
Certification:	ISO9001,ISO14001,OHSAS18001
Model Number:	DFFY 400/4500PM

Detail Information

Place of Origin:

CHINA

Brand Name:

BSC

Certification:

ISO9001,ISO14001,OHSAS18001

Model Number:

DFFY 400/4500PM

Cooling Method:

Water Cooled

Pumping Speed N2:

4500 L/s

Ultimatre Pressure:

LF 5E-6 Pa

Rated Speed:

21000

Cooling Method:

Water Cooling

Max Power:

≤1200

Highlight:

High Light

Highlight:

turbo vacuum pump

turbomolecular vacuum pump

Trading Information

Minimum Order Quantity:

Price:

Packaging Details:

Wooden Box

Delivery Time:

7 working days

Payment Terms:

T/T

Supply Ability:

500 Units per month

Product Description

BAOSI VACUUM water-cooling Oil lubricated Molecular Vacuum Pump

TECHNICAL PARAMETER

Model		DFFY 400/4500PM
Inlet flange	-	LF400
Outlet flange	-	KF40
Pumping speed	L/s	N²:4500
Compression ratio N²	-	1×10⁸
Ultimate pressure	Pa	5×10^-6
Rotation speed	rpm	21000
Run-up time	min	＜18
Oil	ml	200
Forevacuum pump speed	L/s	30
Cooling water temperature	℃	≤25
Cooling water flow	L/s	1
Heater power	W	≤1200
Heater voltage	V	220
Installation direction	-	any
Weight	kg	85

Outside Drawing :

High performance water cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM 0

Pumping Cuver:

High performance water cooling Molecular Turbo Vacuum Pump DFFY 400/4500PM 1

Installation environment requirements:

1. The radial and axial magnetic field strength on the pump body surface must not exceed 3 mT (30 Gs).
2. The molecular pump is resistant to a radiation intensity of 105 rad.
3. Ambient temperature: 5-40℃
4. Relative humidity: ≤85%
5. Voltage: 220±22V, Frequency: 50±1Hz
6. Altitude: ≤3000m

Applications :

Oil-lubricated turbomolecular pumps are extensively used in these core industries:

➢ Semiconductor & Microelectronics

➢ Vacuum Coating (PVD/CVD)

➢ Scientific Research & Laboratory Analysis

➢ Vacuum Heat Treatment & Metallurgy

➢ Optoelectronics & Laser Manufacturing

➢ Lithium Battery & New Energy Material Processing

➢ Analytical Instrumentation

➢ Aerospace & Aviation Vacuum Testing
