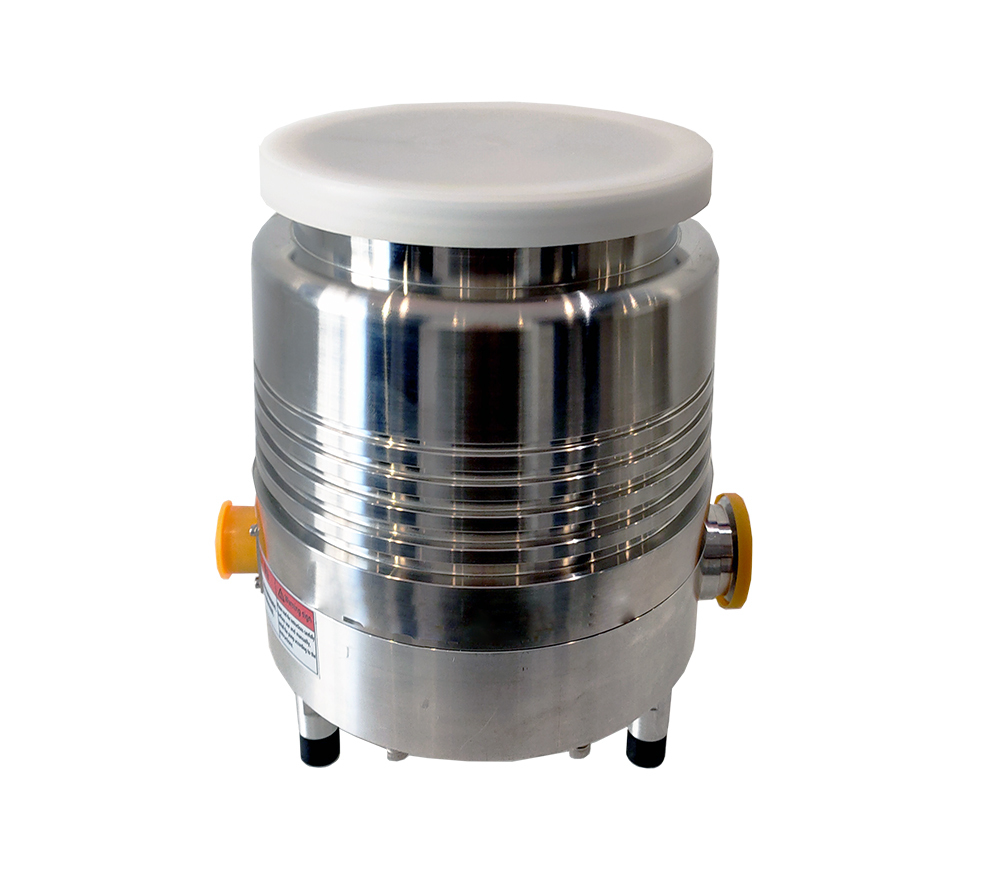

Name: Grease Lubricated High Vacuum Pump FFZ160/700
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: FFZ160/700
Price: 1 USD
Availability: InStock

Grease Lubricated High Vacuum Pump FFZ160/700

Basic Information

Place of Origin:	CHINA
Brand Name:	BSC
Certification:	ISO9001,ISO14001,OHSAS18001
Model Number:	FFZ160/700

Minimum Order Quantity:	1
Price:	1
Packaging Details:	Plywooden Case
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	500 Units per month

Get Best Price Contact Now

Detail Information

Cooling Method:

Water Cooled/air Cooled

Pumping Speed:

700 L/s(N2

Ultimatre Pressure(LF):

6E-7 Pa

Ultimatre Pressure(CF):

6E-8Pa

Highlight:

turbo vacuum pump

high vacuum pump

Product Description

BAOSI TUBO PUMP FFZ160/700 Grease-lubricated Molecular Vacuum Pump

FEATURES

1. Grease lubricated

2. Air-cooled and water-cooled

3. Installation at any angle

TECHNICAL PARAMETER

Model		FFZ160/700
Inlet flange	-	LF160	CF160
Outlet flange	-	KF40
Pumping speed	L/s	700
Compression ratio N2/H2	-	1×10⁹/6×10⁶
Ultimate pressure	Pa	6×10^-7	6×10^-8
Rotation speed	rpm	36000
Run-up time	min	≤5
Vibration	μm	≤0.1
Forevacuum pump speed	L/s	4-8
Cooling water temperature		≤25
Cooling water flow	L/s	≥1
Max Power	W	≤750
Heater voltage	V	AC220
Installation direction	-	Any angle
Weight	kg	22~24

Pumping Curve

Grease Lubricated High Vacuum Pump FFZ160/700 0

DRAWING

Grease Lubricated High Vacuum Pump FFZ160/700 1

APPLICATIONS :

Semiconductor and Electronics Manufacturing
Wafer processing
Pharmaceutical and Biotechnology
Food Processing
Aerospace and defense
