| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | BSV24 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Surface: | Painting | Color: | Grey White |
|---|---|---|---|
| Speed: | 20 M³/h | Ultimate Vacuum: | 0.5 Pa |
| Noise Level: | 65 DB(A) | Motor Power: | 0.75 KW |
| Voltage: | 220V/single Phase And 380V/3 Phase Are Both Aviliable | ||
| High Light: | vane type vacuum pump,rotary vacuum pump |
||

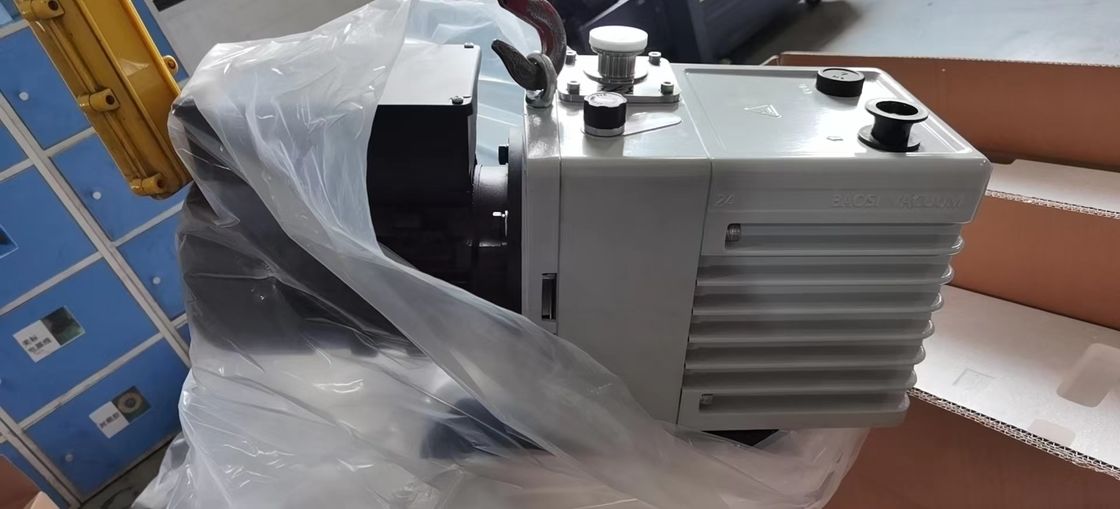

BSV24 Double Stage Oil-lubricated Rotary Vane Vacuum Pump with 6L/s
The rotary vane technology enables a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is guaranteed through circulating oil lubrication, perfectly coordinated materials and state-of-the-art and precise manufacturing. The standard oil separator ensures clean and oil-free exhaust thanks to its sophisticated extractor system with integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapour can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.
Technical Data
| Units | BSV24 | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 20/336 |
| 60 Hz | 24/403 | ||
| Ultimate Vacuum | Without gas ballast | Pa/ mbar | 0.5/5×10-3 |
| With gas ballast | 2/2×10-2 | ||
| Inlet | KF40 | ||
| Outlet | KF40 | ||
| Oil Needs | litre | 3 | |
| Noise Level | dB | 65 | |
Performance Curve
Dimensions
BSV24
Application
Vacuum metallurgy
Thin-film coating
Freeze drying
Labtorary
Glove box
and so on
