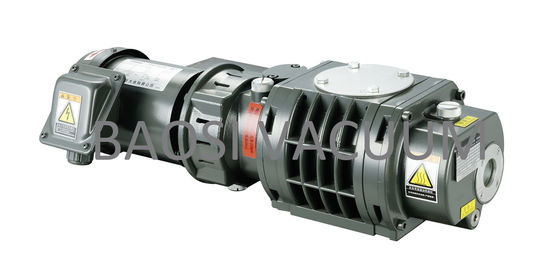

100m3/H Mechanical Roots Vane Type Vacuum Pump two stage

  • 100m3/H Mechanical Roots Vane Type Vacuum Pump two stage
Place of Origin China
Brand Name BSC
Certification CE
Model Number BSJ30L
Minimum Order Quantity 1 set
Price USD 1920 per set
Packaging Details Carton
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance Surface Painting
Color Army Green Pumping Rate 100m3/h(1667L/min)
Material Aluminium Alloy G.W. 30kgs
N.W. 29kgs Meas. 65*34*24cm
High Light

Mechanical vane type vacuum pump

,

100m3/h vane type vacuum pump

,

100m3/h two stage rotary vacuum pump
Leave a Message
Product Description

30L/s (100m³/h) 0.4kW Mechanical Army Green Booster Pump,Roots Pump BSJ30L





Description :



Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.





Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.





​Technical Parameter :



Model Units BSJ30L
Pumping Rate 50 Hz m³h-1 / Lmin-1 100/1667
60 Hz 120/2000
Max Inlet Pressure 50Hz Pa 1.2x103
60Hz Pa 9.2x103



Ultimate Vacuum



 Pa



4×10-2


Motor Power kW(hp) 0.4(0.55)
Inlet -- VG50
Outlet -- VF50
Cooling Method Water cooled
Oil Need L 0.4
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46



Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.





Performance Curve:



100m3/H Mechanical Roots Vane Type Vacuum Pump two stage 0





Dimensions:





  100m3/H Mechanical Roots Vane Type Vacuum Pump two stage 1



100m3/H Mechanical Roots Vane Type Vacuum Pump two stage 2





Applications



  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
