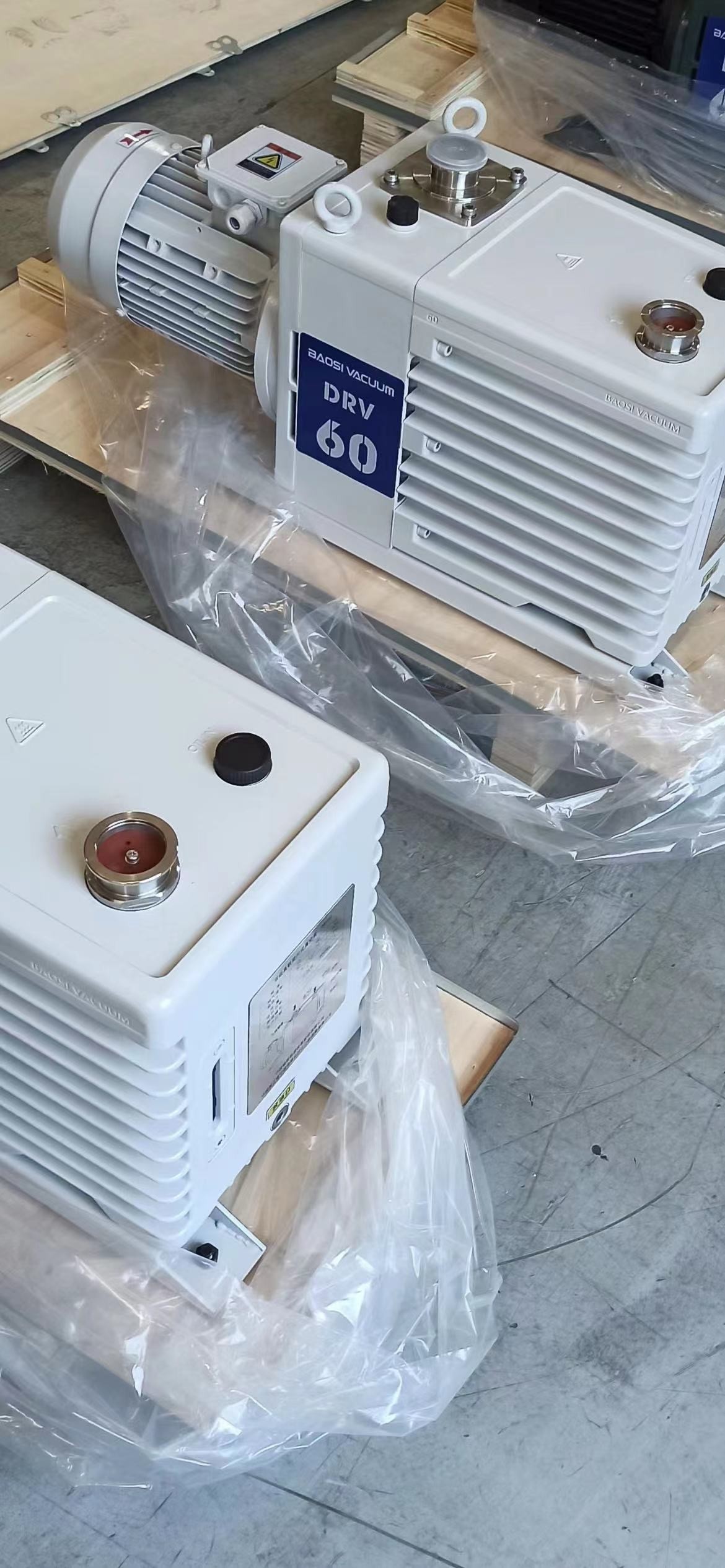

60m³/h Two Stage Oil Rotary Vane Vacuum Pump For Refrigeration System

Name: 60m³/h Two Stage Oil Rotary Vane Vacuum Pump For Refrigeration System
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: DRV60
Price: 1710.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	DRV60

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

DRV60

Product Name:

Two Stage Oil Rotary Vane Vacuum Pump

Color:

7047

Speed:

60 CBM/h

Ultimate Vacuum:

0.67 Pa

Noise Level:

65 DB(A)

Power:

380v 50hz

Surface:

Powder Coating

Pumping Speed:

60 M³/h (50Hz) / 70 M³/h (60Hz)

Ultimate Pressure:

≤5×10⁻¹ Pa (off) / ≤4 Pa (on)

Motor Power:

2.2 KW

Oil Capacity:

5 L

Inlet:

KF40

Outlet:

KF40

Weight:

87 Kg

Size (L*W*H):

792x256x384 Mm

Series:

DRV Two-Stage Oil Rotary Vane Vacuum Pump

Speed:

60 M³/h (50Hz) / 70 M³/h (60Hz)

Highlight:

High Light

Highlight:

Two Stage Oil Rotary Vane Pumps

60m3/H Rotary Vane Vacuum Pump

Refrigeration System Vane Vacuum Pump

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiate

Packaging Details:

wooden box

Delivery Time:

5-10 days

Payment Terms:

T/T

Supply Ability:

500 sets per month

Product Description

DRV60 60m³/h Double Stage Oil Sealed Rotary Vane Vacuum Pump in Green Color

When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.

Technical Data

Model	DRV60
Pumping speed	60 m³/h (50Hz) / 70 m³/h (60Hz)
Ultimate pressure	0.67 Pa
Noise level	65 dB(A)
Motor power	2.2 kW
Oil capacity	5 L
Inlet	KF40
Outlet	KF40
Weight	87 kg
*Size (LWH)*	792x256x384 mm
Gas ballast opened	≤4/4×10-2

Performance Curve

60m³/h Two Stage Oil Rotary Vane Vacuum Pump For Refrigeration System

Dimensions

DRV60

60m³/h Two Stage Oil Rotary Vane Vacuum Pump For Refrigeration System

Application

Vacuum metallurgy

Thin film coating

Freeze drying
