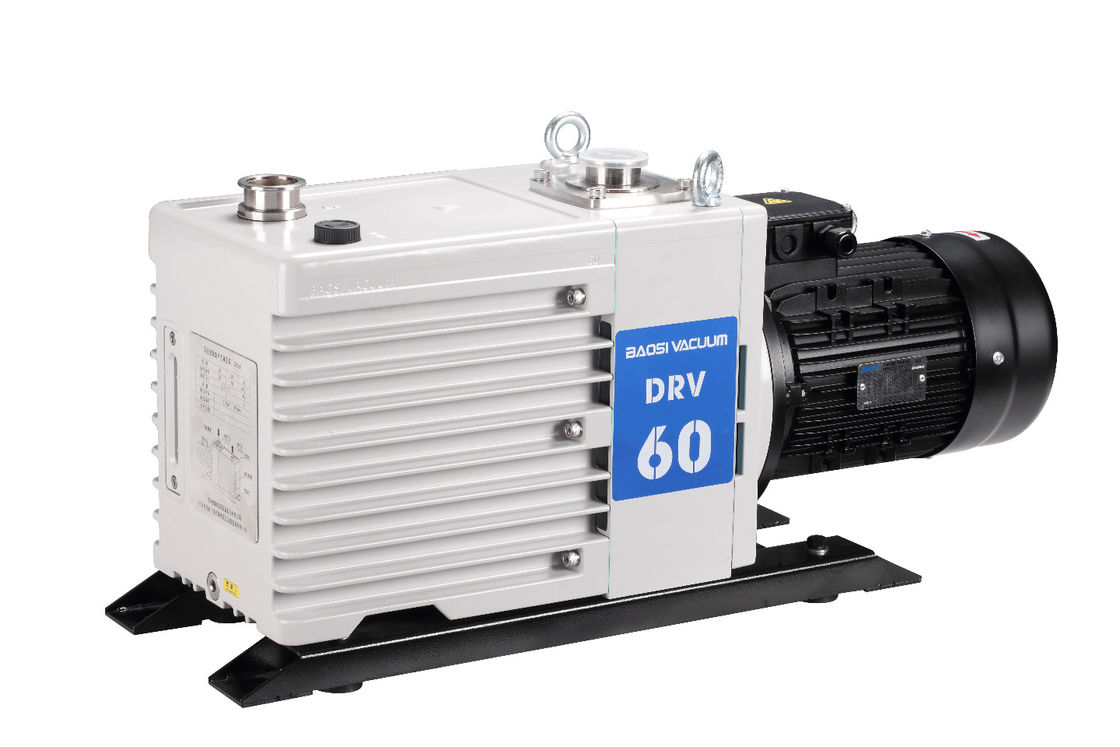

60m³/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System

Name: 60m³/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: DRV60
Price: 1710.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	DRV60

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

DRV60

Product Name:

Two Stage Oil Rotary Vane Vacuum Pump

Color:

RAL 7047

Speed:

60 M³/h

Ultimate Pressure:

0.5 Pa

Noise Level:

65dB(A)

Power:

380V/400V 50hz/60hz

Surface:

Powder Coating

Weight:

~87

Speed:

60 M³/h (50Hz) / 70 M³/h (60Hz)

Weight:

87 Kg

Motor Power:

2.2 KW

Oil Capacity:

5 L

Inlet:

KF40

Outlet:

KF40

Size (L*W*H):

792x256x384 Mm

Highlight:

High Light

Highlight:

Powder Coating Rotary Vane Vacuum Pump

60m3/H Oil Sealed Rotary Vacuum Pump

Refrigeration System Rotary Vane Vacuum Pump

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiate

Packaging Details:

wooden box

Delivery Time:

5-10 days

Payment Terms:

T/T

Supply Ability:

500 sets per month

Product Description

DRV60 60m³/h Two-Stage Oil Sealed Rotary Vane Vacuum Pump

Our wide range of oil-sealed vacuum pump are designed to suit the requirements of customer carefully looking to process resuits.

Features&Benefits

*The ues of non-spring rotary vane to achieve low noise, low vibration and long service life.

*Built-in oil check valve is ued to avoid the oil return phenomenon.

*Built-in forced fed oil pump is uesd toensure the long-term continues operation of the pump at atmospheric pressure.

*The ues of air cooling, oil cooling, water cooling and other cooling methods to ensure the good cooling effect, and make the long-term stable rumming of the pump as well as the stable puming performance.

*Reasonable structure has the advantages of easy assembly and disassembly, as well as the fast and easy maintenance.

When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.

Technical Data

Model	DRV60
Pumping speed	60 m³/h (50Hz) / 70 m³/h (60Hz)
Ultimate pressure	0.5 Pa
Noise level	65dB(A)
Motor power	2.2 kW
Oil capacity	5 L
Inlet	KF40
Outlet	KF40
Weight	87 kg
*Size (LWH)*	792x256x384 mm
Gas ballast opened	≤4/4×10-2

Performance Curve

60m³/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System

Dimensions

DRV60[90]

60m³/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System

Application

Vacuum metallurgy

Thin film coating

Freeze drying
