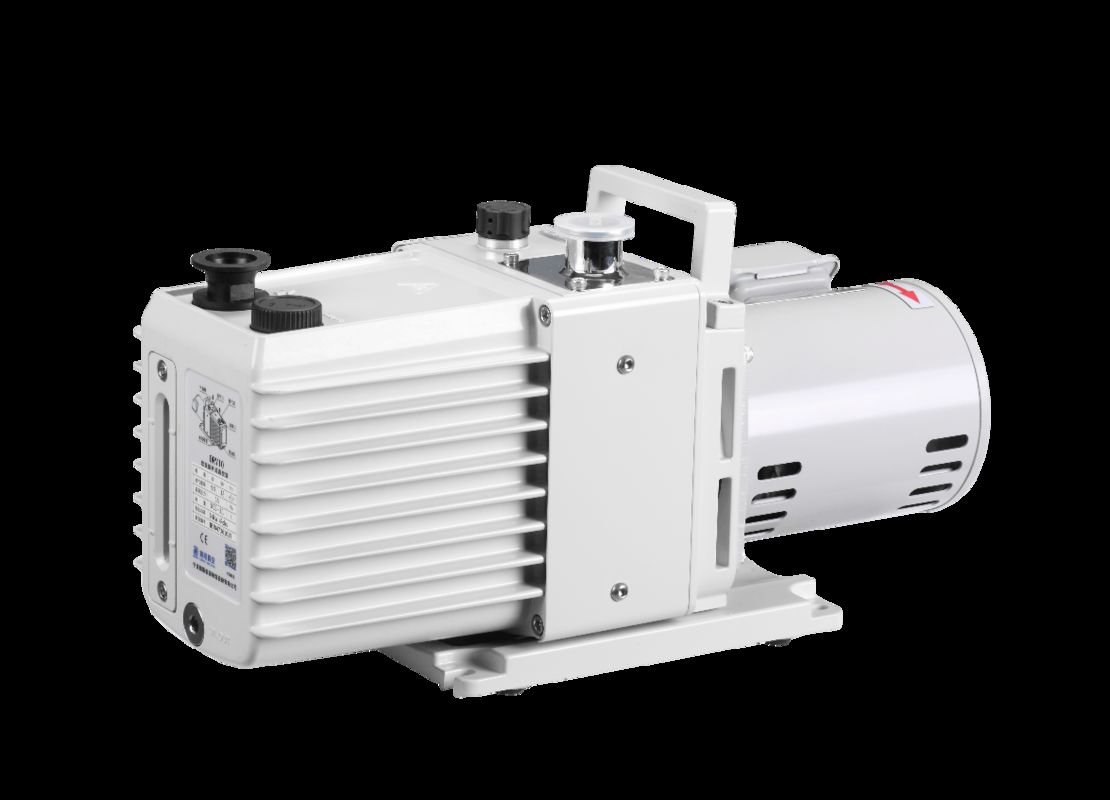

DRV10 Single Phase Oil Lubricated Vacuum Pump Compact Size Low Noise

Name: DRV10 Single Phase Oil Lubricated Vacuum Pump Compact Size Low Noise
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: DRV10
Price: 1710.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	DRV10

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

DRV10

Surface:

Powder Coating

Color:

RAL7047

Speed:

10 CBM/h

Ultimate Vacuum:

0.5 Pa

Noise Level:

54 DB(A)

Motor Power:

0.55 KW

Voltage:

220/single Phase

Weight:

Kgs

Speed:

9.9 M³/h (50Hz) / 12 M³/h (60Hz)

Noise Level:

65 DB(A)

Motor Power:

0.4 KW (50Hz) / 0.55 KW (60Hz)

Weight:

25 Kg

Oil Capacity:

0.9 L

Inlet:

KF25

Outlet:

KF25

Size (L*W*H):

494x166x251 Mm

Highlight:

High Light

Highlight:

mechanical vacuum pump

rotary vacuum pump

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiate

Packaging Details:

carton

Delivery Time:

5-10 days

Payment Terms:

T/T

Supply Ability:

1000 sets per month

Product Description

Compact Size/ Low Noise/ High Vacuum Rate Double Stage Oil-lubricated Rotary Vane Vacuum Pump DRV10 with 42L/s

Because of its small volume, light weight, and low noise, it's more suitable for use in the lab.

Technical Data

Model	DRV10
Pumping speed	9.9 m³/h (50Hz) / 12 m³/h (60Hz)
Ultimate pressure	0.5 Pa
Noise level	65 dB(A)
Motor power	0.4 kW (50Hz) / 0.55 kW (60Hz)
Oil capacity	0.9 L
Inlet	KF25
Outlet	KF25
Weight	25 kg
*Size (LWH)*	494x166x251 mm

Performance Curve

DRV10 Single Phase Oil Lubricated Vacuum Pump Compact Size Low Noise

Dimensions

DRV10 ［16］

DRV10 Single Phase Oil Lubricated Vacuum Pump Compact Size Low Noise

Application

Vacuum metallurgy

Thin film coating

Freeze drying

Laboratory

Glove box

Electron Microscope

Mass Spectrometer
