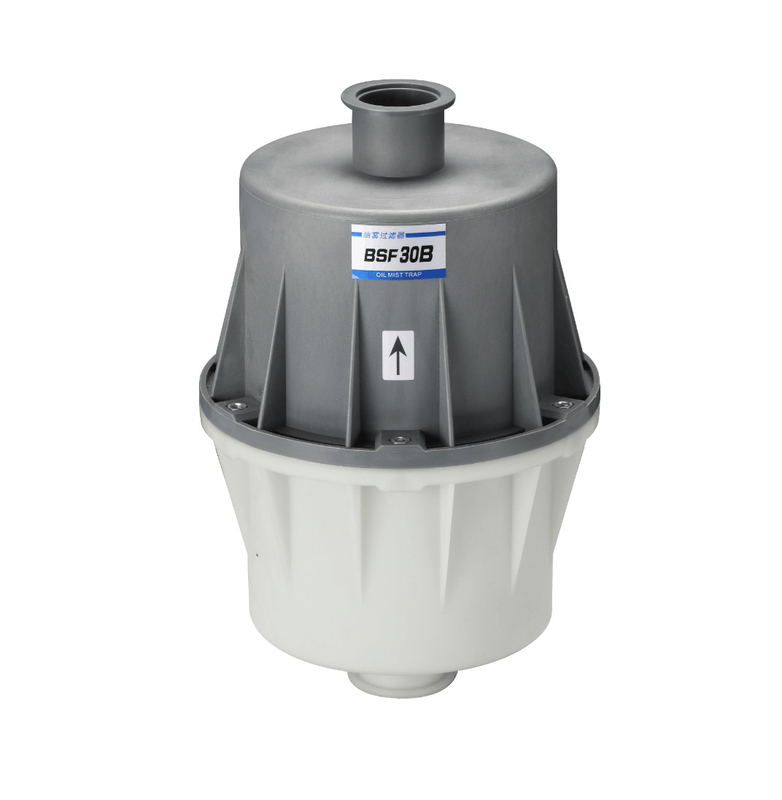

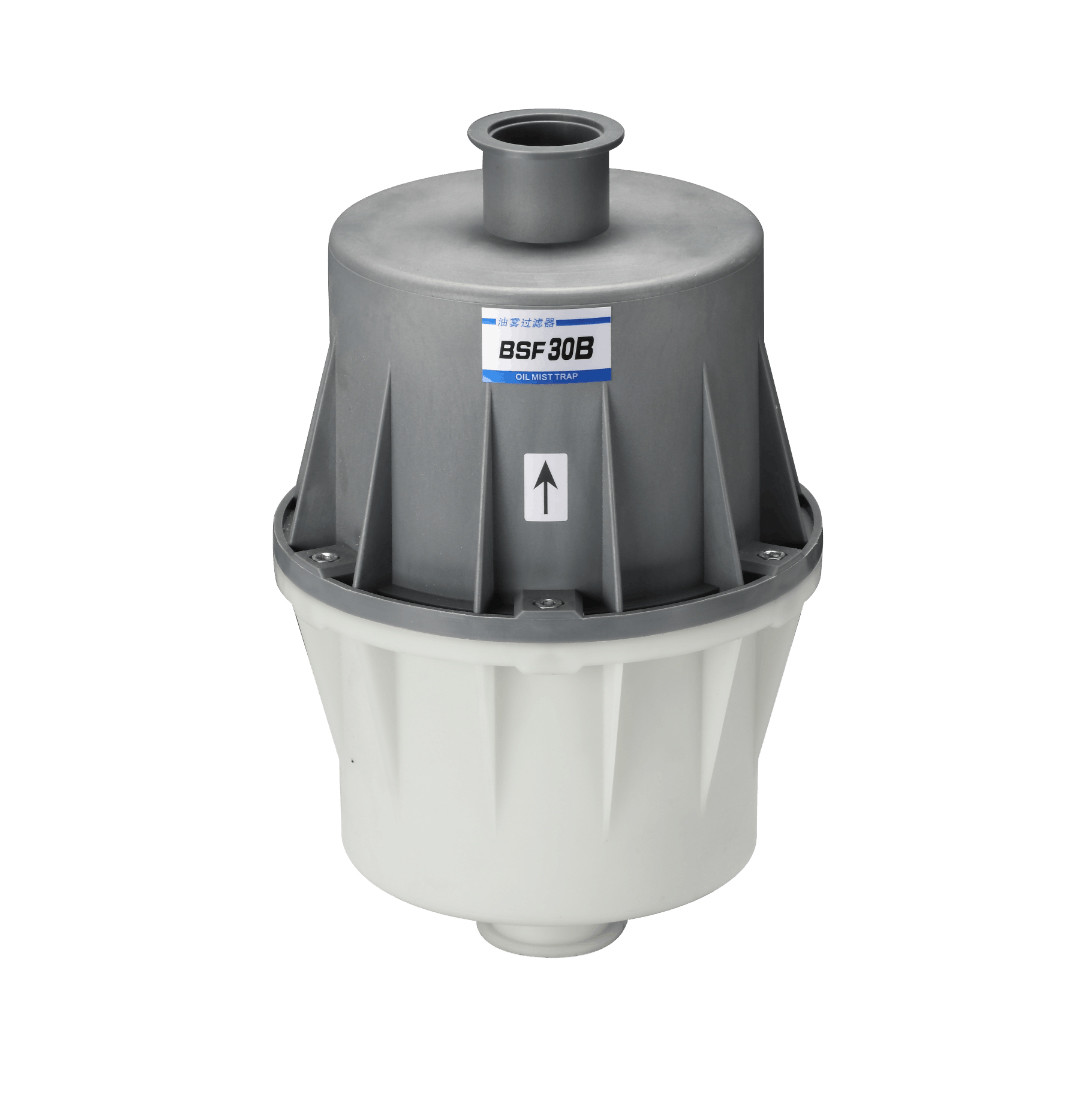

Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection

Place of Origin CHINA
Brand Name BAOSI
Certification ISO9001,ISO14001,CE,OHSAS18001
Model Number BSF30
Minimum Order Quantity 1
Price $
Packaging Details Carton
Payment Terms T/T
Product Details
Model BSF 30 Filter Specification 30L
Baosi Pump BSV30/BSV40/BSV60/BSV90 Max Processing Flow 30L/s
Filter Element Fiberglass Shell Material Steel
Color Silver N.W. 7kg
High Light

oil mist eliminator filter

,

oil mist trap

Leave a Message
Product Description

30L/s oil mist trap to protect the equipment from oil mist pollution



Advantage to the user



  • Filter of the exhaust gas by removal of entrained lubricant particles
  • Emptying via drain screw or exhaust filter drain tap
  • Filter elements(made of glass fiber) are exchangeable



Description:



When the oil rotary vacuum pump is operated at atmospheirc pressure or under low vacuum,the oil will be discharged together with the gas which has been pumped.



This kind of exhaust gas is composed of many tiny oil droplets and exhausted in the form of smoke through the pump outlet.



The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.





Application :



Used with oil rotary vacuum pump or vacuum system.



Parameter:



Model BSF30
Filter Specification 30L
Maximum Processing Flow L/s(m³/h) 30(108)
Inlet KF40
Outlet M50*1.5
Pump

BSV30/BSV40(high load)

BSV60/BSV90(underload)

Weight(kg) 7.4











































Outline Drawing:



Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection 0Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection 1

Application :



Used with oil rotary vacuum pump or vacuum system.
