Cooling Method: | Water Cooled | Pumping Speed: | 3600 L/s |
---|---|---|---|
Ultimatre Pressure: | 8E-8 Pa | Forevacuum Pump Speed: | 30-70 L/s |
High Light: | turbo vacuum pump,turbomolecular vacuum pump |

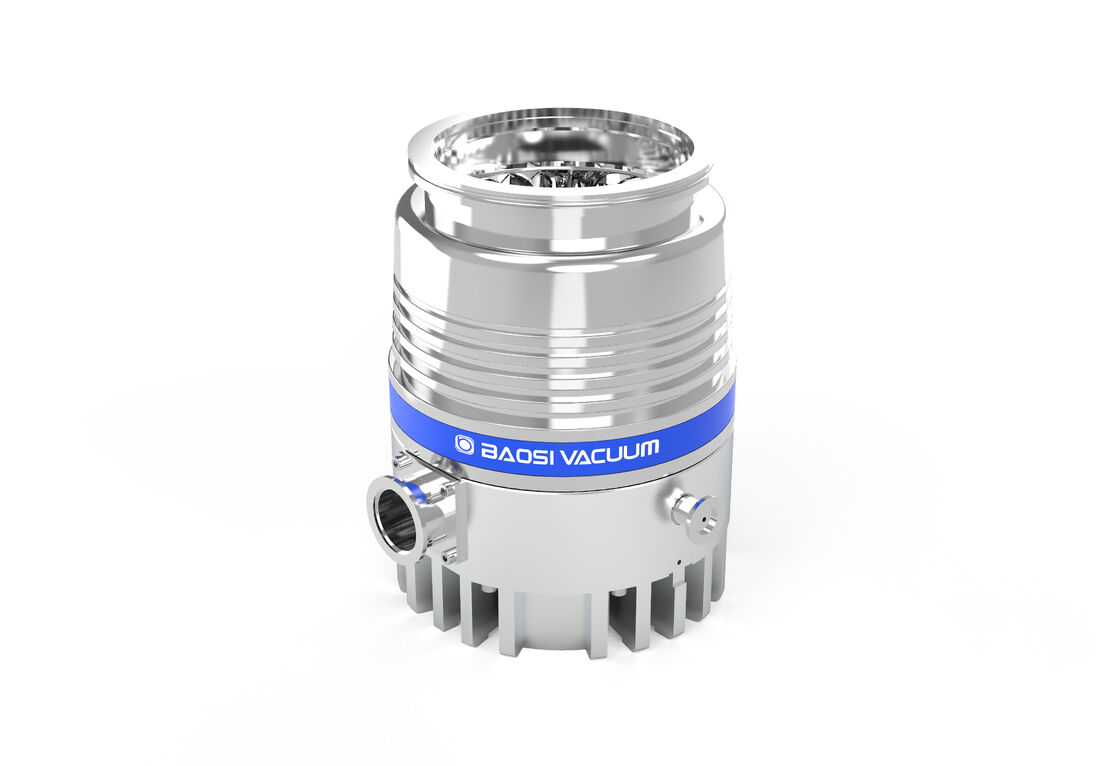

BAOSI VACUUM GFG3600 Water-cooled Turbomolecular Vacuum Pump
FEATURES
1. Grease lubricated
2. Air-cooled
3. Installation on any angle
TECHNICAL PARAMETER
Model | GFG3600 | ||
Inlet flange | - | LF400 | |
Outlet flange | - | LF100 | |
Pumping speed | L/s | 3600 | |
Compression ratio N2/H2 | - | 1×108/5×102 | |
Ultimate pressure | Pa | 5×10-7 | 8×10-8 |
Rotation speed | rpm | 12600 | |
Run-up time | min | ≤10 | |
Vibration | μm | ≤0.15 | |
Forevacuum pump speed | L/s | 30-70 | |
Cooling water temperature | ≤25 | ||
Cooling water flow | L/s | 1 | |
Heater power | W | <700 | |
Heater voltage | V | AC220 | |
Installation direction | - | Vertical ±5o | |
Weight | kg | 100 |
