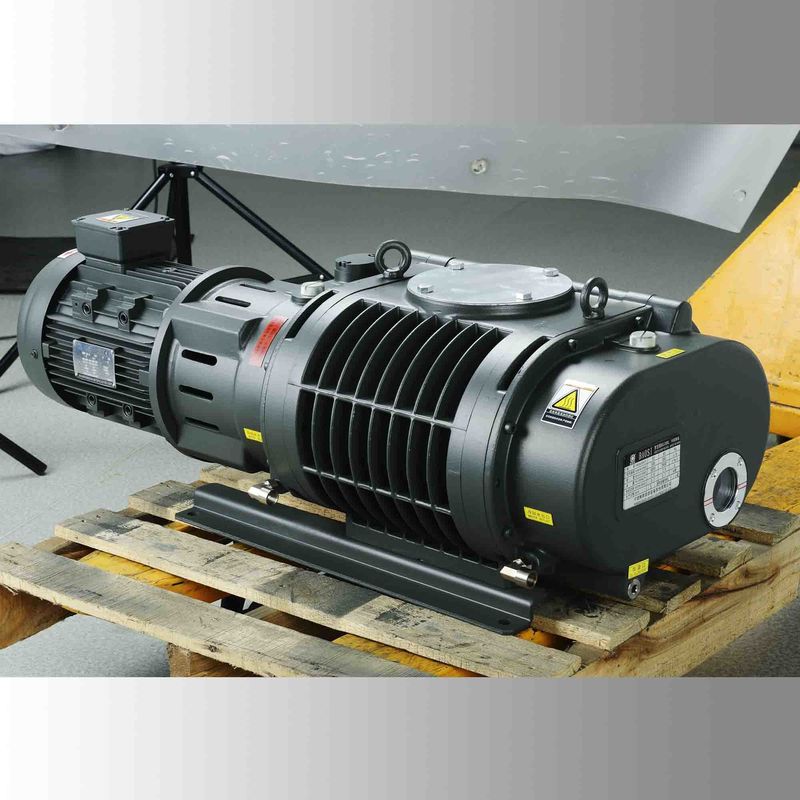

High Clean Vacuum Roots Blower Pump / Vacuum Booster Pump 1000 M³/H
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Corrosion Resistance | Surface | Painting |
|---|---|---|---|
| Color | Army Green | Pumping Rate | 1000 M³/h(16667L/min) |
| Material | Aluminium Alloy | G.W. | 128kgs |
| N.W. | 115kgs | Meas. | 102*50*50cm |
| High Light | roots blower pump,industrial roots blower |
||
Product Description
1200 m³/h Army Green, 3.7kW Mechanical Booster Pump, Roots Pump BSJ300L
Description :
Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.
Characteristics:
- The use of oil-free intermediat seal,multiple sealed way to ensure the high clean vacuum environment in the rotor chamber .
- Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
- The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.
Technical Parameter :
| Model | Units | BSJ300L | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 1000/16667 |
| 60 Hz | 1200/20000 | ||
| Max Inlet Pressure | 50Hz | Pa | 1.3x103 |
| 60Hz | Pa | 1.1x103 | |
|
Ultimate Vacuum
|
Pa/ mbar |
4×10-2
|
|
| Motor Power | kW(hp) | 3.7 (5.0) | |
| Inlet | -- | VG100 | |
| Outlet | -- | VF80 | |
| Cooling Method | Water cooled | ||
| Oil Need | L | 2.0 | |
| Ambient Temp. | ℃ | 5~40 | |
| Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.
Performance Curve:
Dimensions:
Applications
- Vacuum distillation
- Vacuum packaging
- Thin film coating
- Freez drying
- Electrical engineering
- Printing
- Surface treatment technique
- Wind Energy
- Ceramics and glasses
