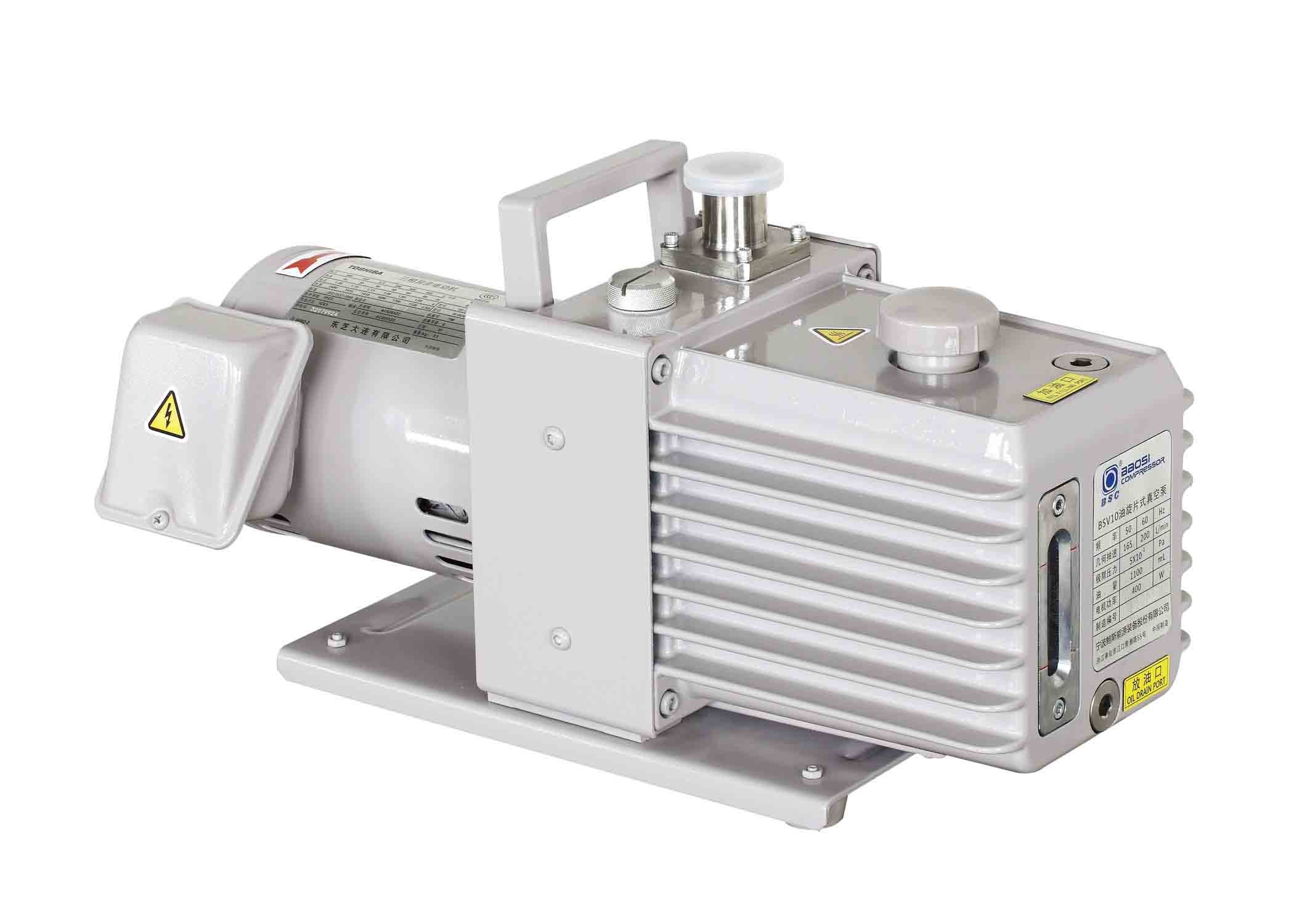

10CBM/H Oil Lubricated Vane Type Vacuum Pump
10CBM/H Oil Lubricated Vane Type Vacuum Pump
  • 10CBM/H Oil Lubricated Vane Type Vacuum Pump

10CBM/H Oil Lubricated Vane Type Vacuum Pump

Product Details:
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: DRV10
Detail Information
Place of Origin:
China
Brand Name:
BSC
Certification:
CE
Model Number:
DRV10
Surface:
Powder Coating
Color:
White
Speed:
10 CBM/h
Ultimate Vacuum:
0.5 Pa
Noise Level:
54 DB(A)
Motor Power:
0.55 KW
Voltage:
220/single Phase And 380/3phase Both Aviliable
Speed:
9.9 M³/h (50Hz) / 12 M³/h (60Hz)
Noise Level:
65 DB(A)
Motor Power:
0.4 KW (50Hz) / 0.55 KW (60Hz)
Oil Capacity:
0.9 L
Weight:
25 Kg
Inlet:
KF25
Outlet:
KF25
Size (L*W*H):
494x166x251 Mm
Highlight:

High Light

Highlight:

Oil Lubricated Vane Type Vacuum Pump

,

10CBM/h Vane Type Vacuum Pump

,

10CBM/h oil lubricated vacuum pump

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiate
Packaging Details:
wooden box
Delivery Time:
5-10 days
Payment Terms:
T/T
Supply Ability:
1000 sets per month
Product Description

Compact Size/ Low Noise/ High Vacuum Rate Double Stage Oil-lubricated Rotary Vane Vacuum Pump DRV10 with 42L/s



Because of its small volume, light weight, low noise, thus, it's more suitable for using in the lab.



​Technical Data

ModelDRV10
Pumping speed9.9 m³/h (50Hz) / 12 m³/h (60Hz)
Ultimate pressure0.5 Pa
Noise level65 dB(A)
Motor power0.4 kW (50Hz) / 0.55 kW (60Hz)
Oil capacity0.9 L
InletKF25
OutletKF25
Weight25 kg
Size (L*W*H)494x166x251 mm



Performance Curve

10CBM/H Oil Lubricated Vane Type Vacuum Pump



Dimensions



DRV10 ［16］



10CBM/H Oil Lubricated Vane Type Vacuum Pump





Application



Vacuum metallurgy

Thin film coating

Freeze drying
