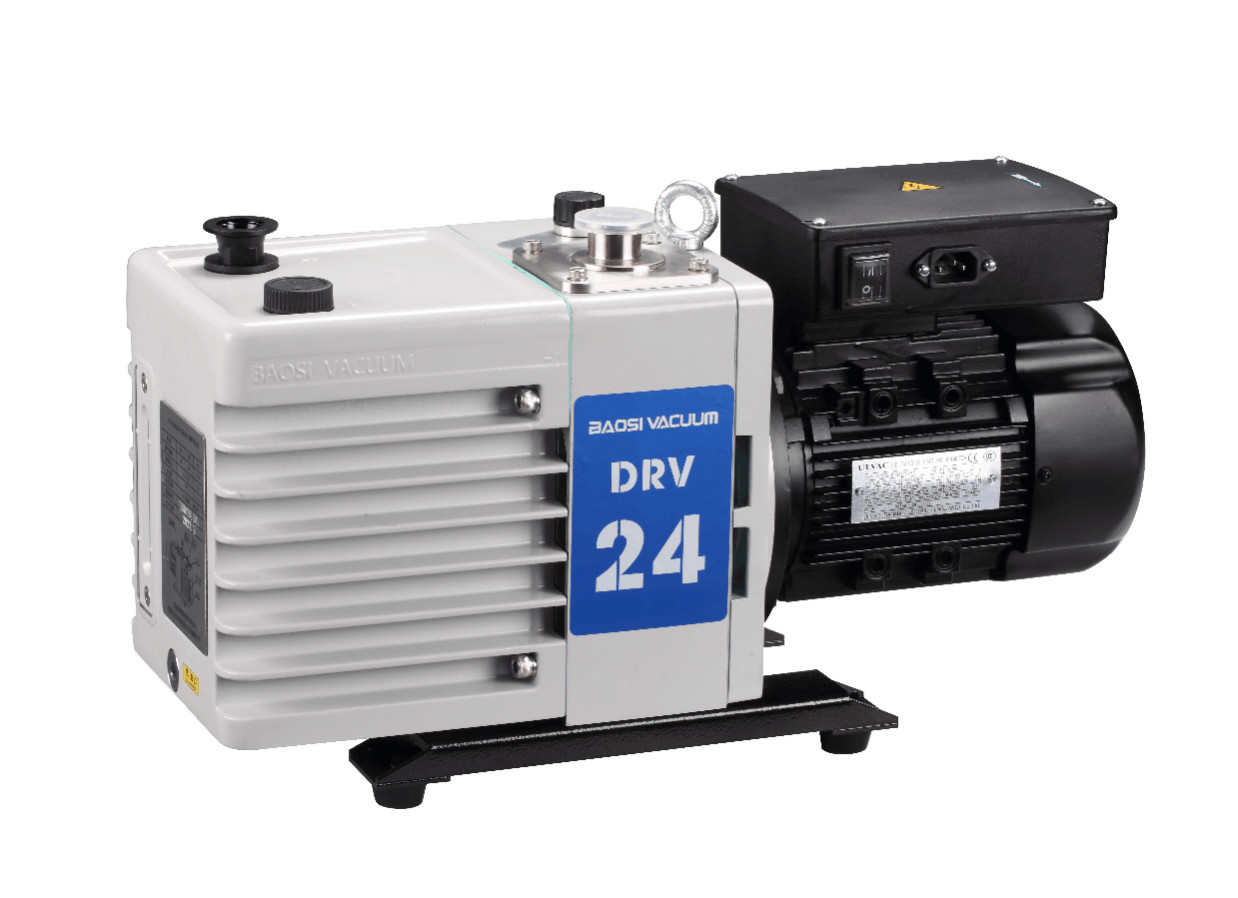

0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24
0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24
  • 0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24

Product Details:
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: DRV24
Detail Information
Place of Origin:
China
Brand Name:
BSC
Certification:
CE
Model Number:
DRV24
Surface:
Power Coating
Color:
7047
Speed:
24 M³/h
Ultimate Vacuum:
0.5 Pa
Noise Level:
63 DB(A)
Motor Power:
0.75 KW
Voltage:
220V/single Phase And 380V/3 Phase Are Both Aviliable
Speed:
24 M³/h (50Hz) / 28 M³/h (60Hz)
Oil Capacity:
1.7 L
Weight:
38 Kg
Inlet:
KF40/KF25
Outlet:
KF40
Size (L*W*H):
558x200x310 Mm
Highlight:

High Light

Highlight:

0.5Pa Rotary Vane Vacuum Pump

,

0.75kW Rotary Vane Vacuum Pump

,

0.5Pa deep vacuum pump

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiate
Packaging Details:
Carton
Delivery Time:
5-10 days
Payment Terms:
T/T
Supply Ability:
1000 sets per month
Product Description

DRV24 Double Stage Oil-lubricated Rotary Vane Vacuum Pump with 6L/s



The rotary vane technology enables a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is guaranteed through circulating oil lubrication, perfectly coordinated materials and state-of-the-art and precise manufacturing. The standard oil separator ensures clean and oil-free exhaust thanks to its sophisticated extractor system with integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapour can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.



​Technical Data

ModelDRV24
Pumping speed24 m³/h (50Hz) / 28 m³/h (60Hz)
Ultimate pressure0.5 Pa
Noise level63 dB(A)
Motor power0.75 kW
Oil capacity1.7 L
InletKF40/KF25
OutletKF40
Weight38 kg
Size (L*W*H)558x200x310 mm





Performance Curve

0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24





Dimensions



DRV24



0.5Pa Oil Rotary Vane Vacuum Pump 24m³/h,model DRV24









Application



Vacuum metallurgy

Thin-film coating

Freeze drying

Lab

... ...
