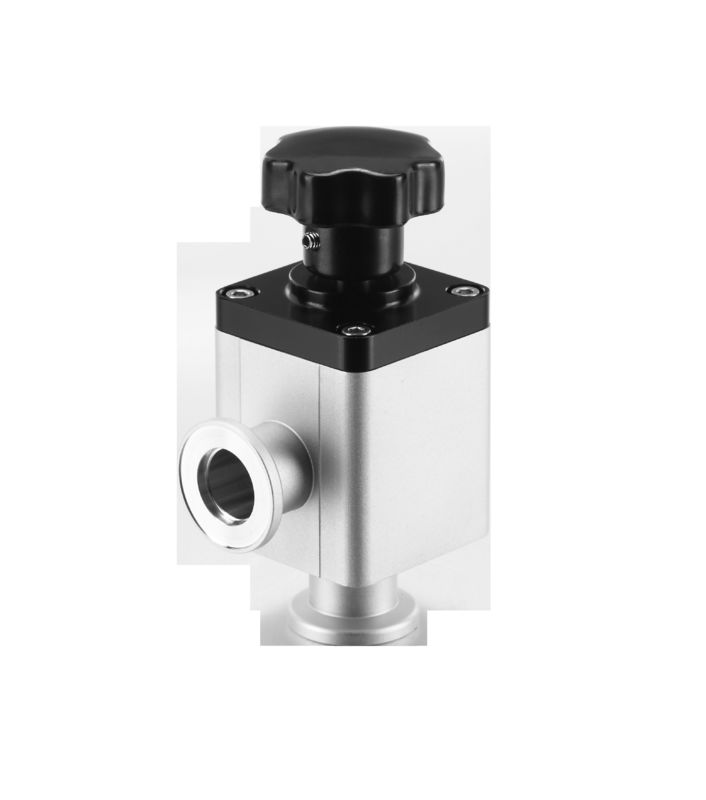

KF16 Manual Type High Vacuum Valve Vacuum Angle Valve GD-J16B Model

  • KF16 Manual Type High Vacuum Valve Vacuum Angle Valve GD-J16B Model
  • KF16 Manual Type High Vacuum Valve Vacuum Angle Valve GD-J16B Model
Place of Origin CHINA
Brand Name BAOSI
Certification ISO9001,ISO14001, ISO14001
Model Number GD-J16B
Minimum Order Quantity 1pc
Price Negotiable
Packaging Details Carton
Payment Terms T/T
Product Details
Shell Material Al Alloy Nominal Diameter 16mm
Body Baking Temp 120 Compressed Air 0.4~0.7MPa
Switching Cycles 1000 000 Installation Location Anywhere
Ambient Temp. 5~40 ℃
High Light

Aluminum Alloy Vacuum Angle Valve

,

KF16 High Vacuum Valve

,

16mm Vacuum Angle Valve
Leave a Message
Product Description

High Vacuum Baffle Valve, Block Valve 16mm, Driver Drive GD-J16B



Structural Features:





  • Modular two-position three-way solenoid valve to realize quick combination by simple operation to meet different needs of customers.
  • Dust-proof design for application with a small amount of dust.
  • Dynamic seal with welding corrugated pipe in AM350 material for more than million times service life.
  • The open/close position is a mechanical micro switch, which is sensitive to reaction, reliable in output, and strong in anti-interference. With mechanical position indication.
  • Easy to replace and repair.
  • The anodized surface of the valve body.

Applications:



Widely applied in semiconductor, photovoltaic, new energy, pharmaceutical, scientific research, laboratory, chemical, light industry, metallurgy, petroleum, machinery, electronics, and other industries, as well as electric vacuum device manufacturing, light bulbs, vacuum flask manufacturing, vacuum welding, vacuum casting, instrumentation, printing and packaging machinery, etc.



Technical Parameter :



Model GD-J16B
Pressure Range Pa 1×10-6Pa～1.0×105Pa
Nominal Diameter mm 16
Percolation Pa·L/s ≤1.3×10-7
First Maintenance Cycle Time per 1000 000(Sylphon seal)
Body Baking Temp. ℃ ≤120
On or off time s ≤0.7
Installation Location — Anywhere
Ambient Temp. ℃ 5~40







INSTALLATION DIMENSION DRAWING





KF16 Manual Type High Vacuum Valve Vacuum Angle Valve GD-J16B Model 0

KF16 Manual Type High Vacuum Valve Vacuum Angle Valve GD-J16B Model 1
