SRV200 200m³/h Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Industrial Vacuum Applications

Name: SRV200 200m³/h Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Industrial Vacuum Applications
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: SRV200
Price: 1710.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	SRV200

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

SRV200

Surface:

Painting

Color:

RAL 7047, Black

Pumping Rate:

160m³/h 50Hz

Oil Need:

16~20L

Noise Level:

Motor Power:

4.0kW

Normal Rotational Speed:

1450 50Hz

Noise Level:

75 DB(A)

Pumping Rate:

180 M³/h (50Hz) / 217 M³/h (60Hz)

Motor Power:

4 KW

Pumping Speed:

180 M³/h (50Hz) / 217 M³/h (60Hz)

Ultimate Pressure:

≤8 Pa (gas Ballast Off) / ≤70 Pa (gas Ballast On)

Oil Capacity:

8 L

Inlet:

G2/VG50

Outlet:

Weight:

165 Kg

Size (L*W*H):

912x568x466 Mm

Series:

SRV Single-stage Oil Rotary Vane Vacuum Pump

Oil Need:

9 L

Oil Capacity:

9 L

Weight:

172 Kg

Highlight:

High Light

Highlight:

SRV200 Single Stage Pump

200m³/h Rotary Vane Pump

Industrial Vacuum Pump

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiate

Packaging Details:

wooden box

Delivery Time:

5-30 days

Payment Terms:

T/T

Supply Ability:

1000 sets per month

Product Description

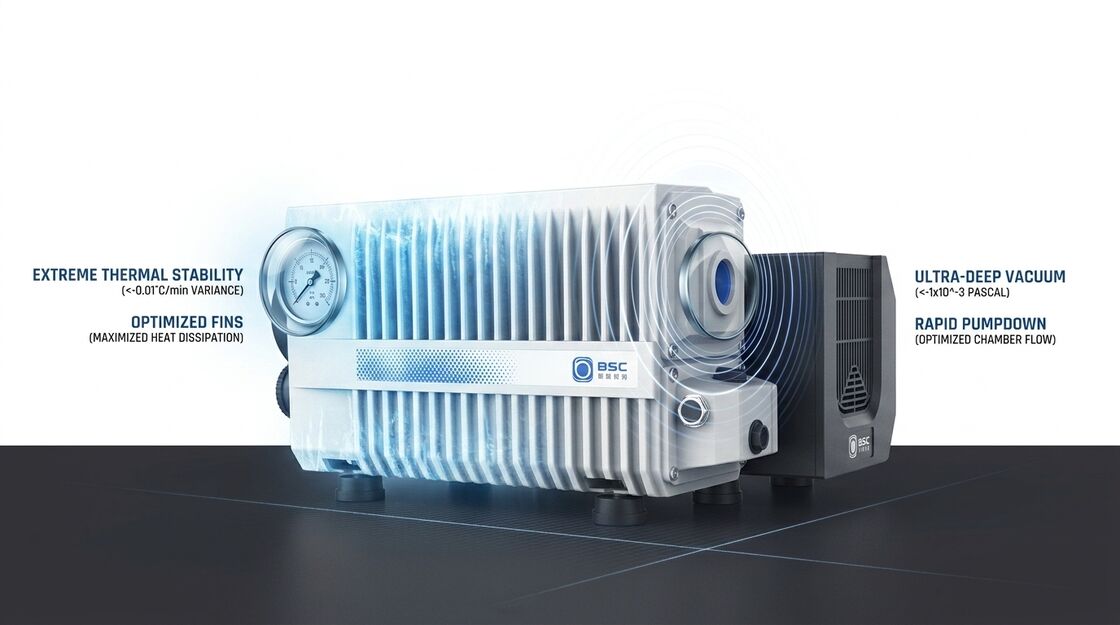

200m³/h High Pumping Speed Single-Stage Oil Sealed Rotary Vane Vacuum Pump SRV200

High pumping speed to maximize your productivity and performance

Technical Data

Model	SRV200
Pumping speed	180 m³/h (50Hz) / 217 m³/h (60Hz)
Ultimate pressure	≤8 Pa (gas ballast off) / ≤70 Pa (gas ballast on)
Noise level	75 dB(A)
Motor power	4.0kW
Oil capacity	9 L
Inlet	G2/VG50
Outlet	G2
Weight	172 kg
*Size (LWH)*	912x568x466 mm

Application

Vacuum metallurgy process

Thin-film coating technologies

Pharmaceutical freeze-drying

Optical coating
