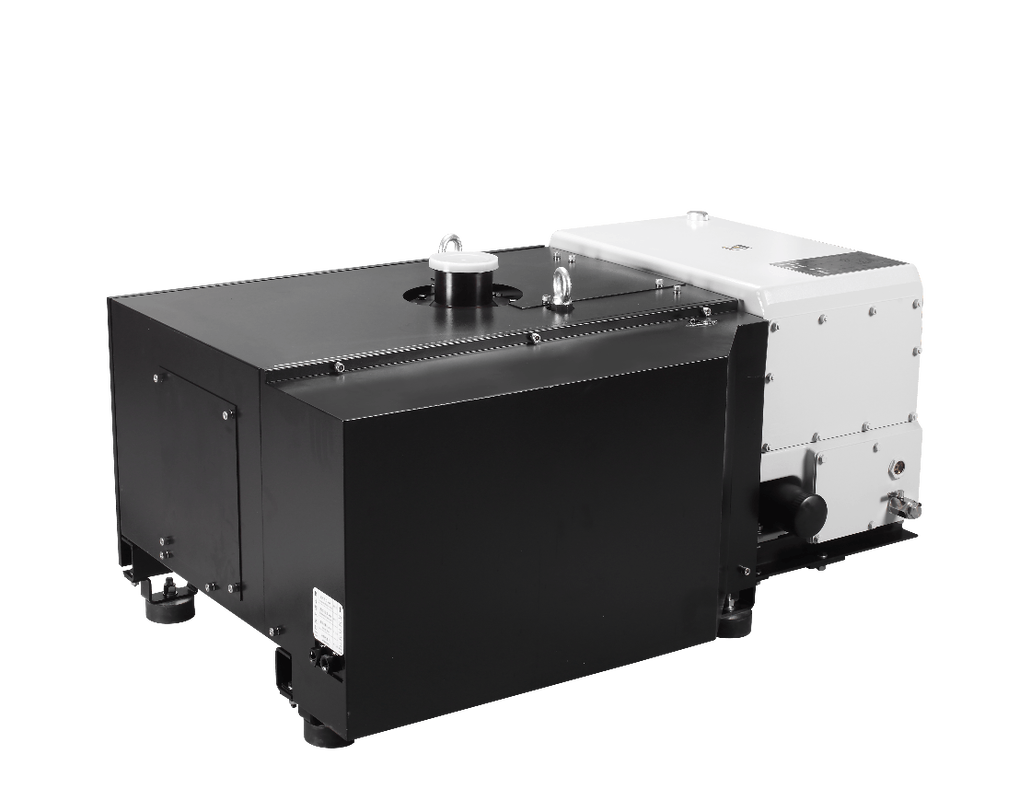

SRV630 630m³/h High Capacity Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Heavy Industry
SRV630 630m³/h High Capacity Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Heavy Industry
  • SRV630 630m³/h High Capacity Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Heavy Industry
  • SRV630 630m³/h High Capacity Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Heavy Industry

SRV630 630m³/h High Capacity Oil Lubricated Single Stage Rotary Vane Vacuum Pump for Heavy Industry

Product Details:
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: SRV630
Detail Information
Place of Origin:
China
Brand Name:
BSC
Certification:
CE
Model Number:
SRV630
Surface:
Painting
Color:
RAL 7047, Black
Pumping Rate:
500m³/h 50Hz
Oil Need:
35~45L
Noise Level:
78
Motor Power:
15kW
Normal Rotational Speed:
1450 50Hz
Noise Level:
76 DB(A)
Motor Power:
15 KW
Pumping Rate:
630 M³/h (50Hz) / 755 M³/h (60Hz)
Pumping Speed:
630 M³/h (50Hz) / 755 M³/h (60Hz)
Ultimate Pressure:
≤8 Pa (off) / ≤70 Pa (1 Gas Ballast) / ≤200 Pa (2 Gas Ballasts)
Water Vapour Tolerance:
4000 Pa (1 Gb) / 6000 Pa (2 Gb)
Water Vapour Capacity:
17 Kg/h (1 Gb) / 26 Kg/h (2 Gb)
Cooling Method:
Air (A) / Water (W)
Oil Capacity:
26 L
Intake:
DN100 ISO-K
Weight:
675 Kg (A) / 672 Kg (W)
Size (L*W*H):
1525x906x740 Mm (A) / 1525x950x740 Mm (W)
Series:
SRV Single-stage Oil Rotary Vane Vacuum Pump
Highlight:

High Light

Highlight:

SRV630 Single Stage Pump

,

630m³/h High Capacity Pump

,

Heavy Duty Vacuum Pump

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiate
Packaging Details:
wooden box
Delivery Time:
10-40 days
Payment Terms:
T/T
Supply Ability:
500 sets per month
Product Description

630m³/h High Capacity Single-Stage Oil Sealed Rotary Vane Vacuum Pump SRV630



Maximum productivity with high pumping speed to meet heavy industrial demands



Technical Data



 UnitsSRV630
Pumping Rate50 Hzm³h-1 / Lmin-1500/8333
60 Hz600/10000
InletVG100
OutletVG80
Oil Needsliter35~45
Noise LeveldB78
Ultimate VacuumWithout gas ballastPa / mbar8/8*10-2



Application



Heavy industrial vacuum systems

Large-scale vacuum coating

Steel degassing

Chemical processing
