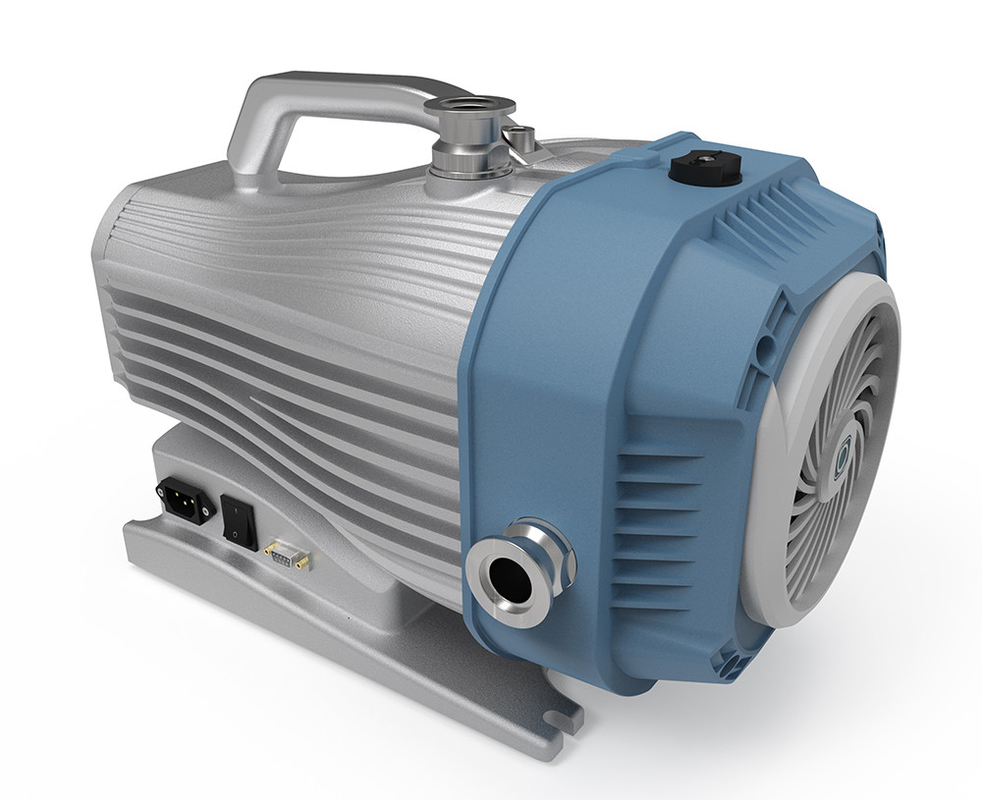

Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump

  • Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump
Place of Origin China
Brand Name BSC
Certification CE
Model Number GSP10
Minimum Order Quantity 1 set
Price Negotiate
Packaging Details wooden box
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ultimate Vacuum 0.01mbar Color Blue Grey
Speed 10.5L/s Material Cast Iron
Operating Temp. 5~40℃ Dimensions 574*335*368mm
Surface Painting Weight 53kgs
High Light

dry scroll vacuum pump

,

oil free vacuum pump
Leave a Message
Product Description

35 m³/h 1800 rpm Vacuum Pump,  Oil Free Dry Scroll Pump GSP10





Description



Scroll pump is new kind of oil-free mechanical pump with features of simple construction,good sealing,high vacuum etc.As a high technology products,it have highly technical requirement in the design and manufacture.With benefits of low consumption, long working-life,high reliability and low noise,it have incomparable advantage in the application of clean process and have popular use in the market. In order to meet the featured application requirement of domestic and oversea customer,Baosi Vacuum developed the GVD and GSP series dry scroll pump with excellent performance and high cost efficiency.





​Technical Data



Model GSP10
Nominal rotational speed rpm 1800
Displacement m³h-1 35
Motor power W 1100
Voltage input V 1-ph, 100-240/3-ph,200-460
Noise level dB (A) 56
Inlet flange - NW40
Exhaust flange - NW25
Max water vapour pumping rate gh-1 200
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 53
Cooling Method - Air cooled




Performance Curve



Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump 0







Dimensions



  Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump 1



Application



  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)
