Home > Products >
Scroll Vacuum Pump
>

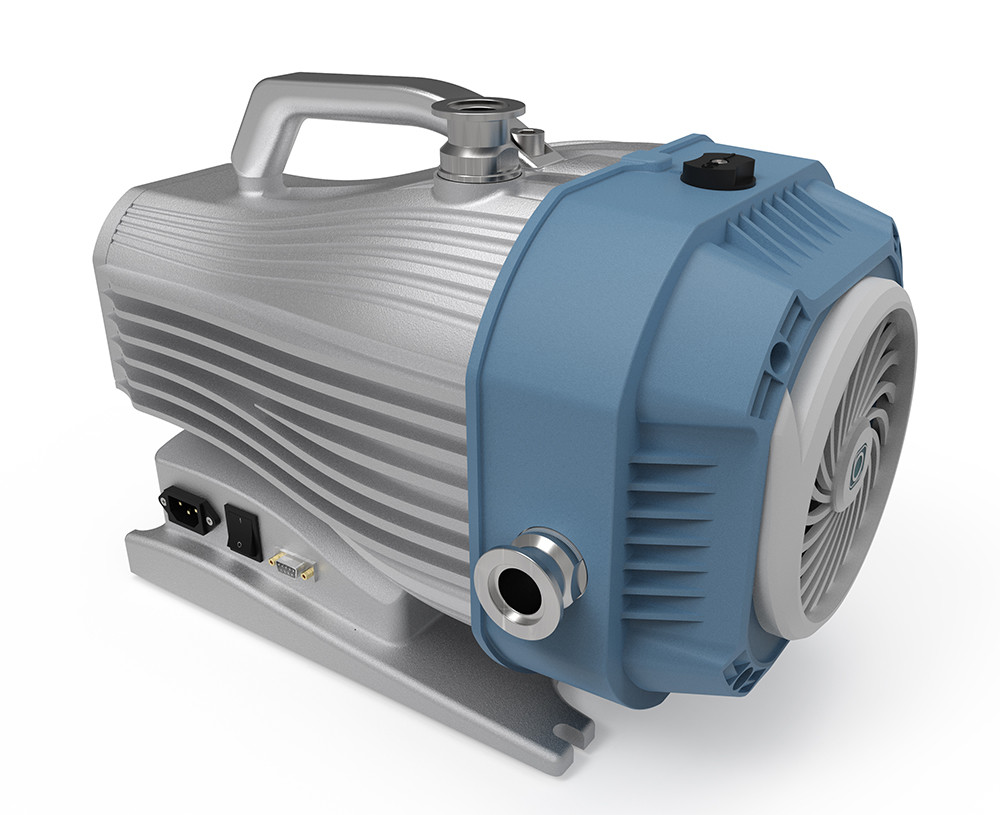

IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved
  • IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved
  • IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved

IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved

Product Details:
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: IDSP36
Detail Information
Place of Origin:
China
Brand Name:
BSC
Certification:
CE
Model Number:
IDSP36
Ultimate Vacuum:
0.01mbar
Color:
Blue And Grey
Speed:
10L/s
Material:
AL ALLOY
Operating Temp.:
5~40℃
Dimensions:
574*335*368mm
Surface:
Painting
Weight:
56kgs
Highlight:

High Light

Highlight:

dry scroll pump

,

oil free vacuum pump

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiate
Packaging Details:
wooden box
Delivery Time:
5-30 days
Payment Terms:
T/T
Supply Ability:
100 sets per month
Product Description

IDSP36, 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved





Description



The scroll pump is a new type of oil-free mechanical pump characterized by its simple construction, effective sealing, and high vacuum capabilities.

As a high-technology product, it has highly technical requirements in design and manufacture. With its benefits of low consumption, long working life, high reliability, and low noise, it has an incomparable advantage in the application of clean processes and is widely popular in the market. To meet the requirements of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pumps with excellent performance and high cost efficiency.





​Technical Data



Model IDSP36
Nominal rotational speed rpm 1800
Displacement L/s 10
Motor power W 1100
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 56
Inlet flange - KF40
Exhaust flange - KF25
Max water vapour pumping rate gh-1 200
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 56
Cooling Method - Air cooled




Performance Curve



IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved 0IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved 1



Dimensions







IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved 2



Feedback from clients



https://youtu.be/3ecsqle7bs4





Picture in the exhibition



IDSP36 1800 rpm 10L/s Oil Free Dry Scroll Vacuum Pump CE Approved 3





Application



  • Electron microscopy
  • High-energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)



Tags:

oil free vacuum pump,

dry scroll vacuum pump,

dry scroll pump
