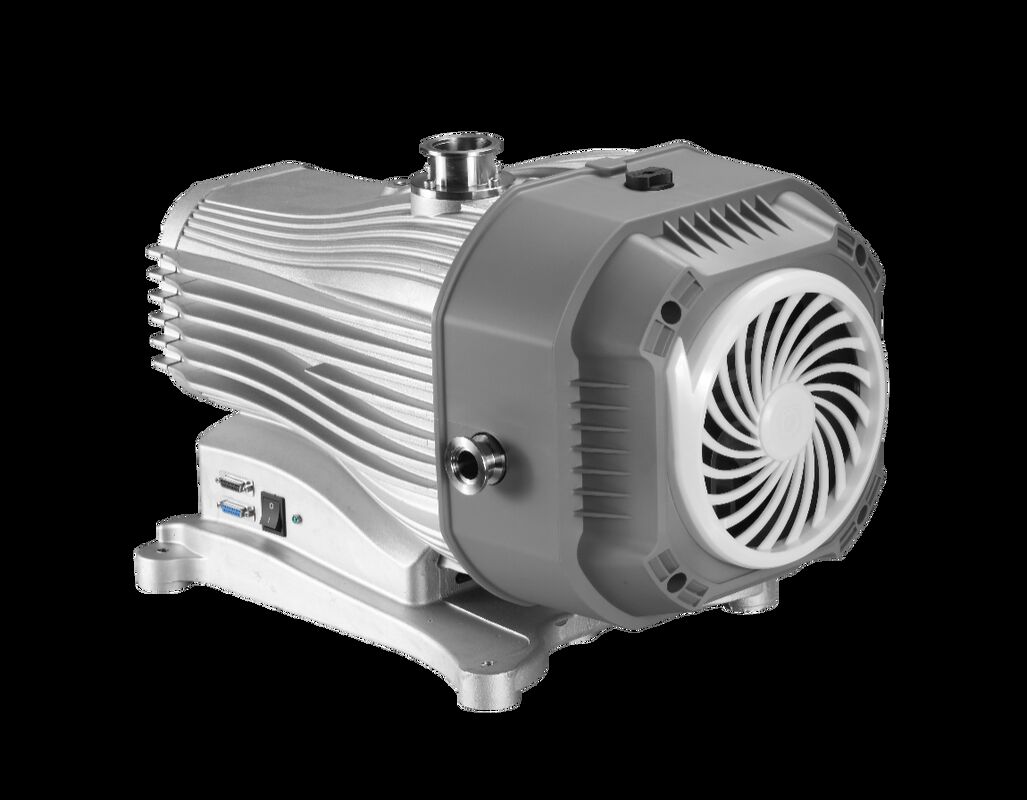

36m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free

Name: 36m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free
Brand: Ningbo Baosi Energy Equipment Co., Ltd.
SKU: IDSP36
Price: 1,710.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	BSC
Certification:	CE
Model Number:	IDSP36

Detail Information

Place of Origin:

China

Brand Name:

BSC

Certification:

Model Number:

IDSP36

Ultimate Vacuum:

0.01mbar (1Pa)

Color:

Sky Blue/Grey

Speed:

10L/s

Material:

Operating Temp.:

10~40℃

Dimensions:

574*335*368 Mm

Surface:

Painting

Net Weight:

56kg

Input Voltage:

1phase 100-120/200-240V

Application:

Laboratory, Industrial, Semiconductor, Medical, Research

Cooling Method:

Air-cooled

Operating Temp:

10~40℃

Inlet Connection:

KF40

Outlet Connection:

KF25

Power Supply:

110V/220V, 50/60Hz

Pumping Speed:

36m³/h

Type:

Dry Scroll Vacuum Pump

Ultimate Pressure:

0.01mbar

Highlight:

High Light

Highlight:

Air Cooled Scroll Vacuum Pump

Mechanical Dry Scroll Vacuum Pump

36m3/H Oil Free Dry Scroll Pump

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiate

Packaging Details:

wooden box

Delivery Time:

5-30 days

Payment Terms:

T/T

Supply Ability:

500 sets per month

Product Description

35 m³/h Dry Scroll Vacuum Pump IDSP36 , Sky Blue Air cooled Oil-Free

Description

Scroll pump is a new kind of oil-free mechanical pump with features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, quiet operation make IDSP the ultimate dry choice. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.

Technical Data

Model		IDSP36
Nominal rotational speed	rpm	1800
Displacement	m³h^-1	35
Motor power	W	1100
Ultimate Vacuum	mbar	0.01
Voltage input	V	1-ph, 100-120/200-240
Noise level	dB (A)	56
Inlet flange	-	KF40
Exhaust flange	-	KF25
Max water vapour pumping rate	gh^-1	200
Leak tightness	mbar ls^-1	＜1×10^-6
Weight	kg	56
Cooling Method	-	Air cooled

Performance Curve

36m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free 0

36m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free 1

Application

Electron microscopy
High energy physics
Mass spectrometry
Glove box
Beam welding/laser welding
Space simulation
Coating(PVD/CVD)
