| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | IDSP10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | wooden box |
| Delivery Time: | 5-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
| Ultimate Vacuum: | 0.008mbar (0.8Pa) | Color: | Sky Blue, Grey |
|---|---|---|---|
| Speed: | 10 M³/h(3L/s) | Material: | Cast Iron |
| Operating Temp.: | 5~40℃ | Dimensions: | 430*274*305mm |
| Surface: | Painting | Weight: | 28kg |
| Input Voltage: | 1-phase 100-120/200-240 |

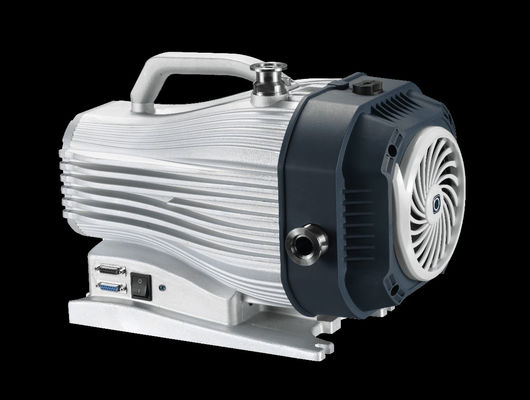

10 m³/h Dry Scroll Vacuum Pump IDSP10, Sky Blue Air-cooled Oil-Free
Description
Scroll pump is a new kind of oil-free mechanical pump with features of simple construction, good sealing, high vacuum, etc. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.
Technical Data
| Model | IDSP10 | |
| Nominal rotational speed | rpm | 1800 |
| Displacement | m³h-1 | 10 |
| Motor power | W |
400 |
| Ultimate Vacuum | mbar | 0.008 |
| Voltage input | V | 1-ph, 100-120/200-240 |
| Noise level | dB (A) | 54 |
| Inlet flange | - | KF25 |
| Exhaust flange | - | KF25 |
| Max water vapour pumping rate | gh-1 | 136 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 28 |
| Cooling Method | - | Air cooled |
Performance Curve
Dimensions
Application
