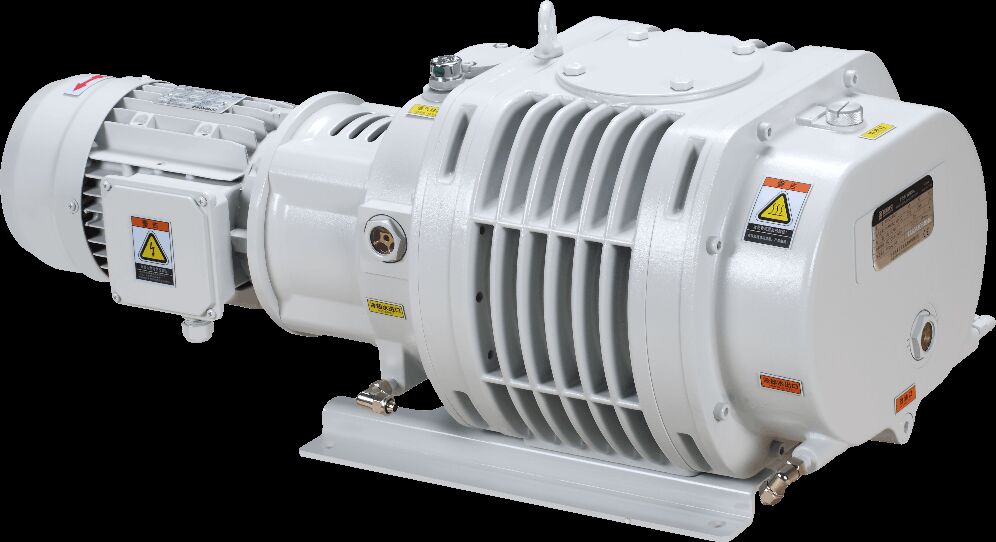

BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW

  • BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW
  • BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW
Place of Origin China
Brand Name BSC
Certification CE
Model Number BSJ150L
Minimum Order Quantity 1 set
Packaging Details wooden box
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Heat Sink, Corrosion Resistance, Efficient Energy Saving Surface Painting
Color White Pumping Rate 500 M3/h (8330L/min)
Material Aluminium Alloy G.W. 95kgs
N.W. 82kgs Meas. 102*50*50cm
Leave a Message
Product Description

White , 500m³/h Mechanical Booster Pump,Roots Pump BSJ150L



Description :



Roots vacuum pumps, which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.



Characteristics:



  • The use of oil-free intermediate seal, multiple sealed way to ensure the high clean vacuum environment in the rotor chamber.
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • Special shaft seal is used to achieve the long stable running without oil leakage.
  • The BSJ-L series is made of all-aluminum alloy, heat sink, corrosion resistance, and efficient energy saving.The BSJ-LC series is made of cast iron. The unique liquid coupling method enables the pump to start directly under the atmosphere, which greatly reduces the time of pumping.
  • Compact structure, light weight, and small volume.



​Technical Parameter :



Model Units BSJ150L
Pumping Rate 50 Hz m³h-1 / Lmin-1 500/8330
60 Hz 600/10000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103



Ultimate Vacuum



 Pa/ mbar



0.4/4×10-3


Motor Power kW(hp) 2.2(3.0)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 1.6
Ambient Temp. ℃ 5~40
Weight -- BSO-46



Note: The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the Mcleod gauge is used.

         The cooling water temperature of inlet port must be 5~30℃ When the temperature is too low, keep it in an environment that is not easy to condense.



Performance Curve:





BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW 0





Dimensions:





BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW 1



BSJ150L Aluminium alloy Roots Vacuum Booster Pump 500m3/h 2.2kW 2



Applications



  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freeze drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
