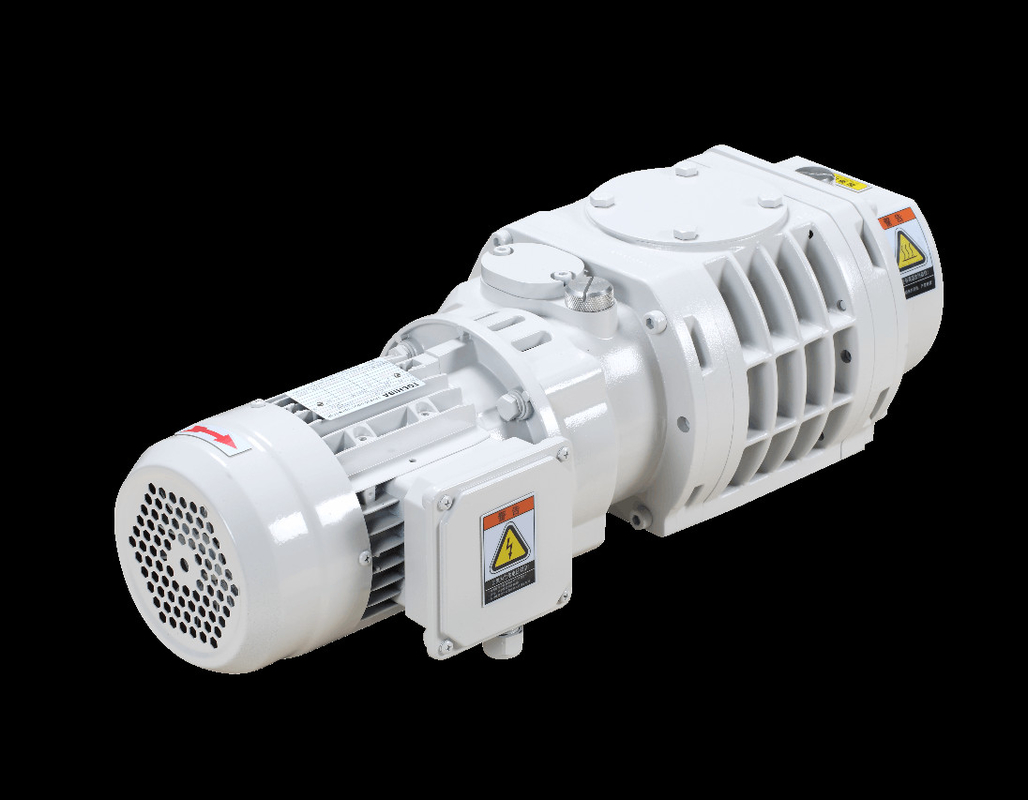

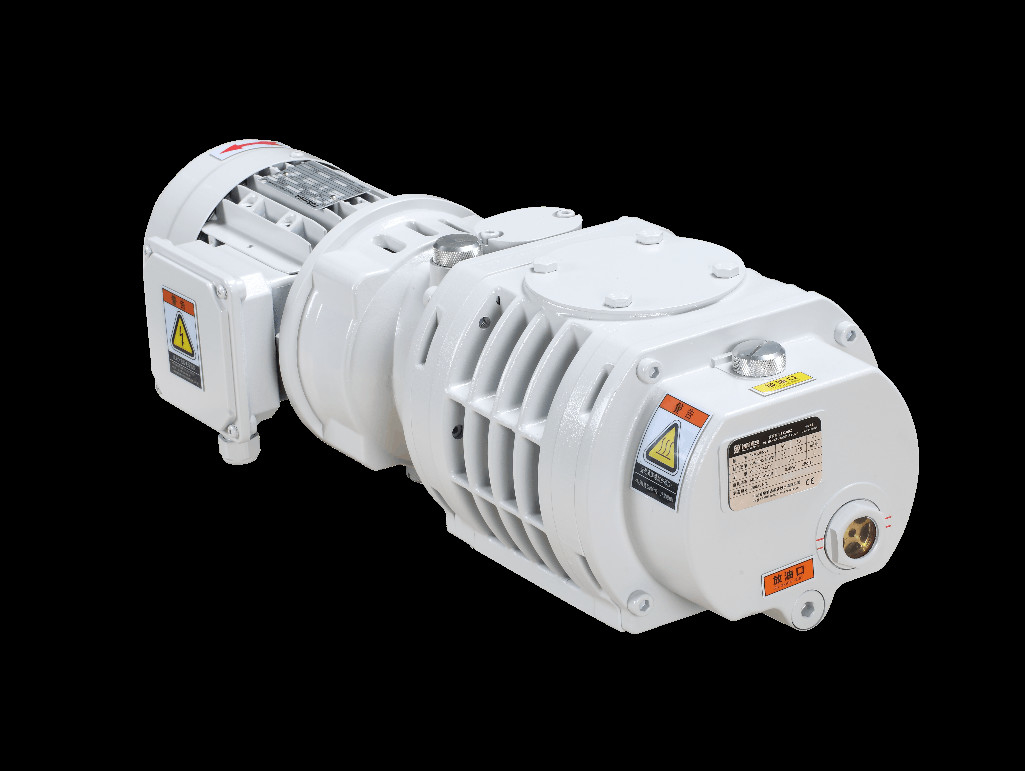

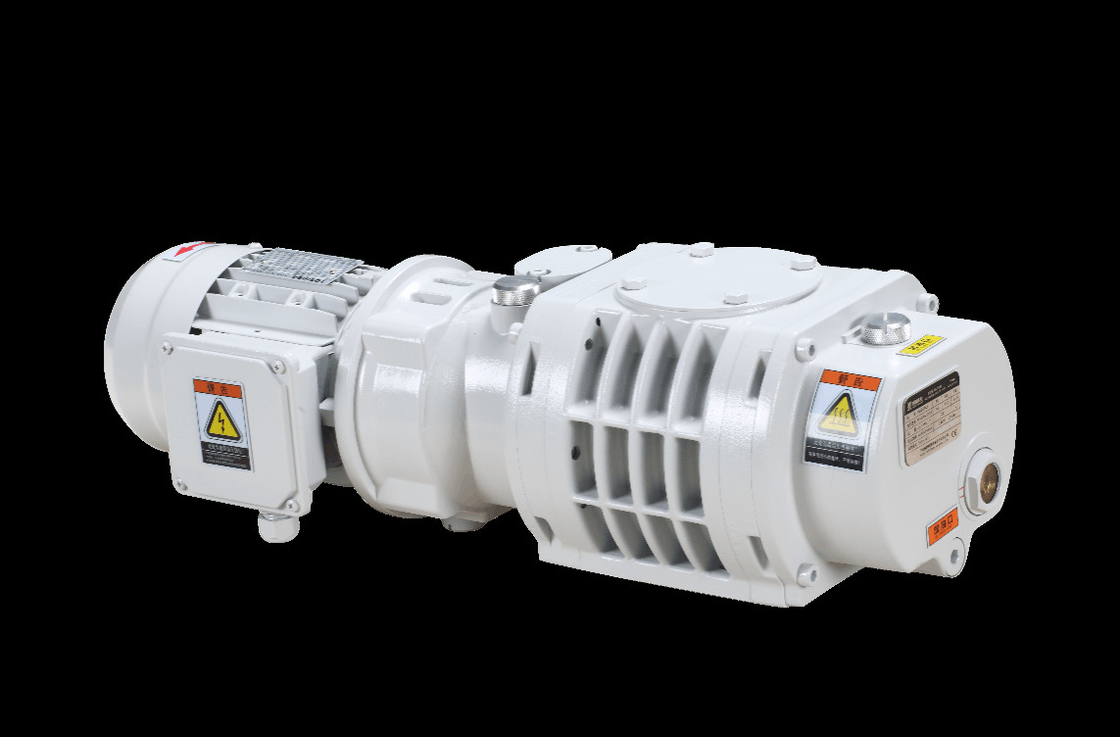

BSJ100Z Aluminium Alloy Roots Vacuum Booster Pump 95m3/H 0.4kW
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Heat Sink, Corrosion Resistance, Efficient Energy Saving | Surface | Painting |
|---|---|---|---|
| Color | White | Pumping Rate | 95m3/h (1580L/min) |
| Material | Aluminium Alloy | G.W. | 30kgs |
| N.W. | 29kgs | Meas. | 65*34*24cm |
| High Light | Aluminium Alloy Roots Booster Vacuum Pump,Vacuum Booster Pump 0.4kW,Vacuum Booster Pump 95m3/H |
||
Product Description
95m³/h(1580L/min) 0.4kW Mechanical White Booster Pump, Roots Pump, BSJ100Z
Description :
Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.
Characteristics:
- The use of oil-free intermediate seal, multiple sealed way to ensure the high clean vacuum environment in the rotor chamber.
- Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
- Special shaft seal is used to achieve the long stable running without oil leakage.
- The BSJ-L series is made of all-aluminum alloy, heat sink, corrosion resistance, and efficient energy saving.The BSJ-LC series is made of cast iron. The unique liquid coupling method enables the pump to start directly under the atmosphere, which greatly reduces the time of pumping.
- Compact structure, light weight, and small volume.
Technical Parameter :
| Model | Units | BSJ100Z | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 95/1580 |
| 60 Hz | 115/21920 | ||
| Max Inlet Pressure | 50Hz | Pa | 1.3x103 |
| 60Hz | Pa | 1.3x103 | |
|
Ultimate Vacuum
|
Pa |
0.4
|
|
| Motor Power | kW(hp) | 0.4(0.55) | |
| Inlet | -- | VG50 | |
| Outlet | -- | VF50 | |
| Cooling Method | Water cooled | ||
| Oil Need | L | 0.4 | |
| Ambient Temp. | ℃ | / | |
| Vacuum Pump Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the Mcleod gauge is used.
The cooling water temperature of inlet port must be 5~30℃ When the temperature is too low, keep it in an environment that is not easy to condense.
Performance Curve:
Dimensions:
Applications
- Vacuum distillation
- Vacuum packaging
- Thin film coating
- Freez drying
- Electrical engineering
- Printing
- Surface treatment technique
- Wind Energy
- Ceramics and glasses
