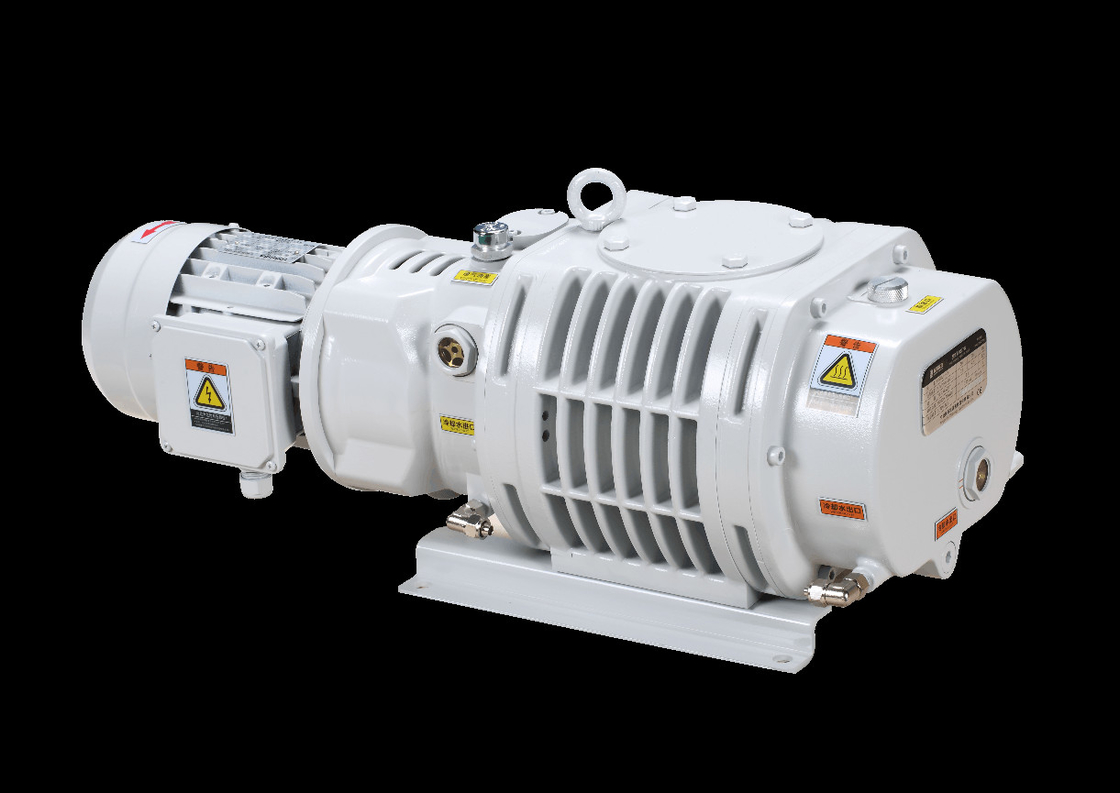

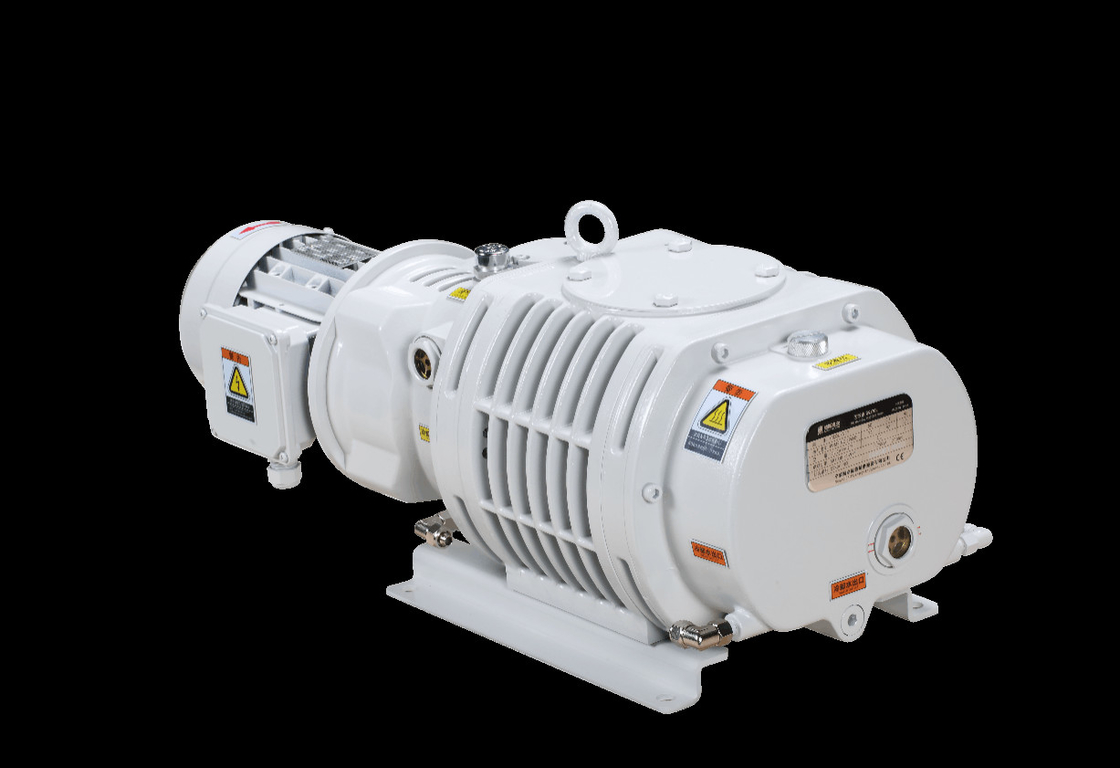

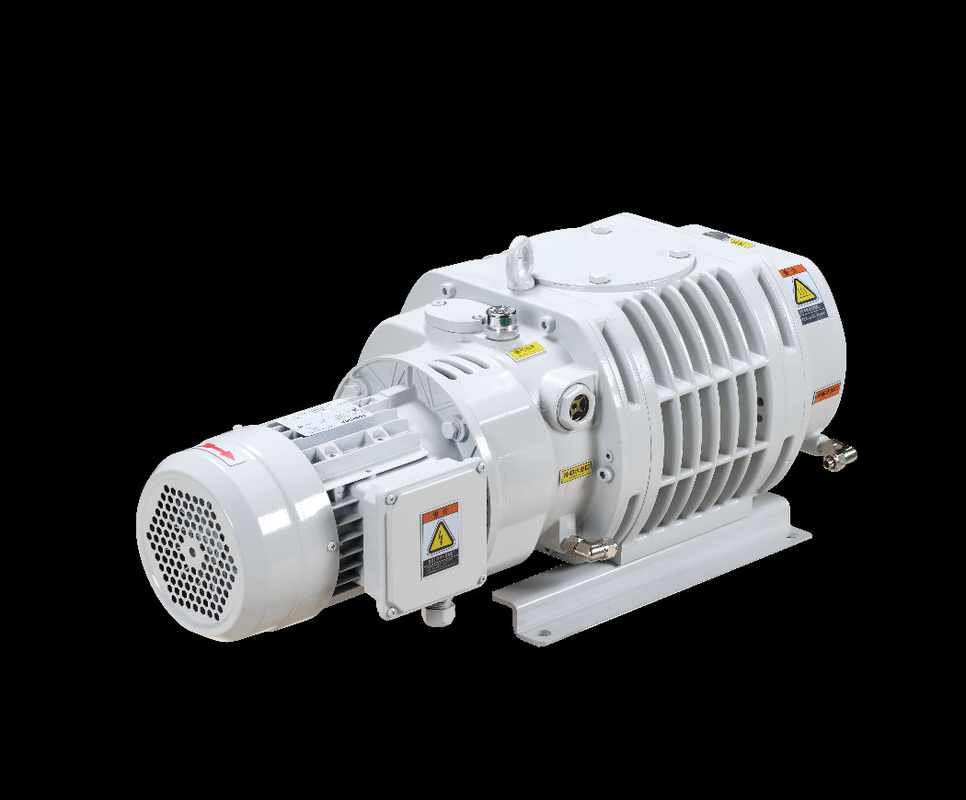

BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW

  • BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW
  • BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW
  • BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW
Place of Origin China
Brand Name BSC
Certification CE
Model Number BSJ70L
Minimum Order Quantity 1 set
Price USD 2400 per set
Packaging Details WOODEN CASE
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Heat Sink, Corrosion Resistance, Efficient Energy Saving Surface Painting
Color White Pumping Rate 280 M3/h (165CEM)
Material Aluminium Alloy G.W. 63kgs
N.W. 52kgs Meas. 85*40*42cm
High Light

Aluminium Alloy Roots Vacuum Booster Pump

,

Vacuum Booster Pump 280m3/H

,

BSJ70L Roots Vacuum Pump
Leave a Message
Product Description

BSJ70L 165CFM (280m³/h) 50Hz 0.75kW 2Poles Mechanical Booster Pump,Roots Pump





Description :



Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.



Characteristics:



  • The use of oil-free intermediate seal, multiple sealed way to ensure the high clean vacuum environment in the rotor chamber.
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • Special shaft seal is used to achieve the long stable running without oil leakage.
  • The BSJ-L series is made of all-aluminum alloy, heat sink, corrosion resistance, and efficient energy saving.The BSJ-LC series is made of cast iron. The unique liquid coupling method enables the pump to start directly under the atmosphere, which greatly reduces the time of pumping.
  • Compact structure, light weight, and small volume.



​Technical Parameter :



Model Units BSJ70L
Pumping Rate 50 Hz m³h-1 / Lmin-1 280/4670
60 Hz 330/55000
Max Inlet Pressure 50Hz Pa 1.2x103
60Hz Pa 9.3x102



Ultimate Vacuum



 Pa



4×10-1


Motor Power kW(hp) 0.75 (1)
Inlet -- VG80
Outlet -- VF80
Cooling Method Water cooled
Oil Need L 0.8
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46



Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

         The cooling water temperature of inlet port must be 5~30℃ When the temperature is too low, keep it in an environment that is not easy to condense.





Performance Curve:



BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW 0





Dimensions:



BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW 1





BSJ70L Aluminium Alloy Roots Vacuum Booster Pump 280m3/H 0.72kW 2



Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses





We provide you with individual support,we train you and we offer 24/7 service worldwide.
