Home > Products >
Scroll Vacuum Pump
>

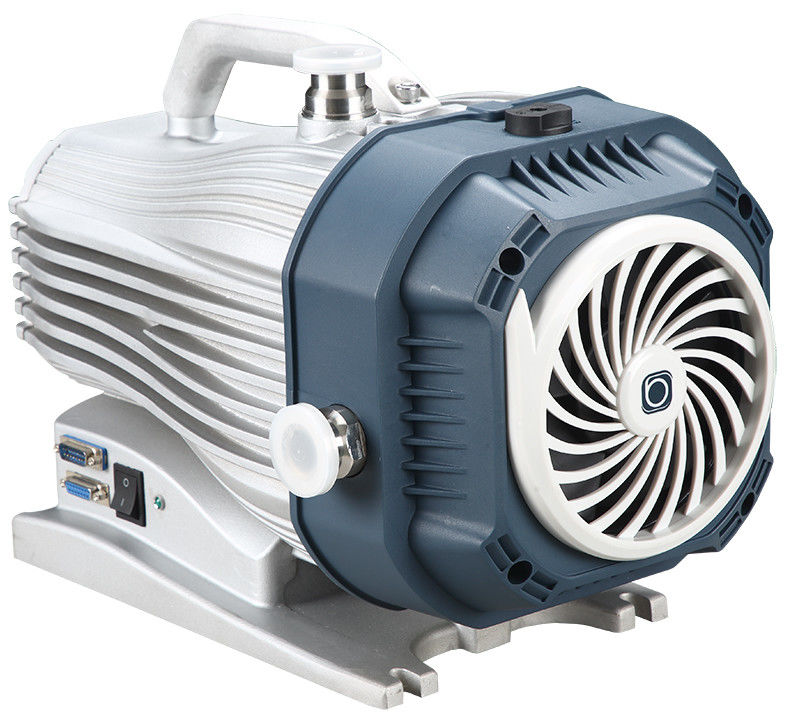

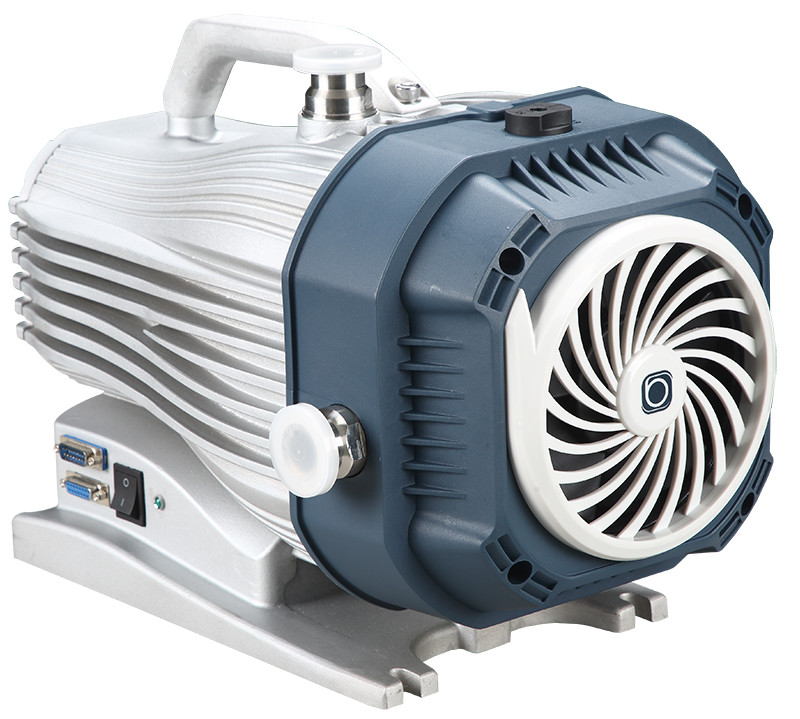

10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump
10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump
  • 10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump
  • 10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump

10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump

Product Details:
Place of Origin: China
Brand Name: BSC
Certification: CE
Model Number: IDSP10
Detail Information
Place of Origin:
China
Brand Name:
BSC
Certification:
CE
Model Number:
IDSP10
Ultimate Vacuum:
0.008mbar
Color:
Blue
Speed:
10 M³/h
Material:
Cast Iron
Operating Temp.:
10~40℃
Dimensions:
367*270*250mm
Surface:
Painting
Weight:
28kg
Highlight:

High Light

Highlight:

dry scroll vacuum pump

,

oil free vacuum pump

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiate
Packaging Details:
wooden box
Delivery Time:
5-30 days
Payment Terms:
T/T
Supply Ability:
500 sets per month
Product Description

10 m³/h Vacuum Pump, Sky Blue Oil-Free Dry Scroll Pump IDSP10





Description



The scroll pump is a new type of oil-free mechanical pump characterized by its simple construction, effective sealing, and high vacuum capabilities.

As a high-technology product, it has highly technical requirements in design and manufacture. With its benefits of low consumption, long working life, high reliability, and low noise, it has an incomparable advantage in the application of clean processes and is widely popular in the market. To meet the requirements of domestic and overseas customers, Baosi Vacuum developed the GVD and GSP series dry scroll pumps with excellent performance and high cost efficiency.





​Technical Data



Model IDSP10
Nominal rotational speed rpm 1800
Displacement m³h-1 10
Motor power W

400
Ultimate Vacuum mbar 0.008
Voltage input V 1-ph, 100-240
Noise level dB (A) 54
Inlet flange - KF25
Exhaust flange - KF25
Max water vapour pumping rate gh-1 136
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 28
Cooling Method - Air cooled




Performance Curve

10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump 0



Dimensions







10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump 1





Application



  • Electron microscopy
  • High-energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)



10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump 2
