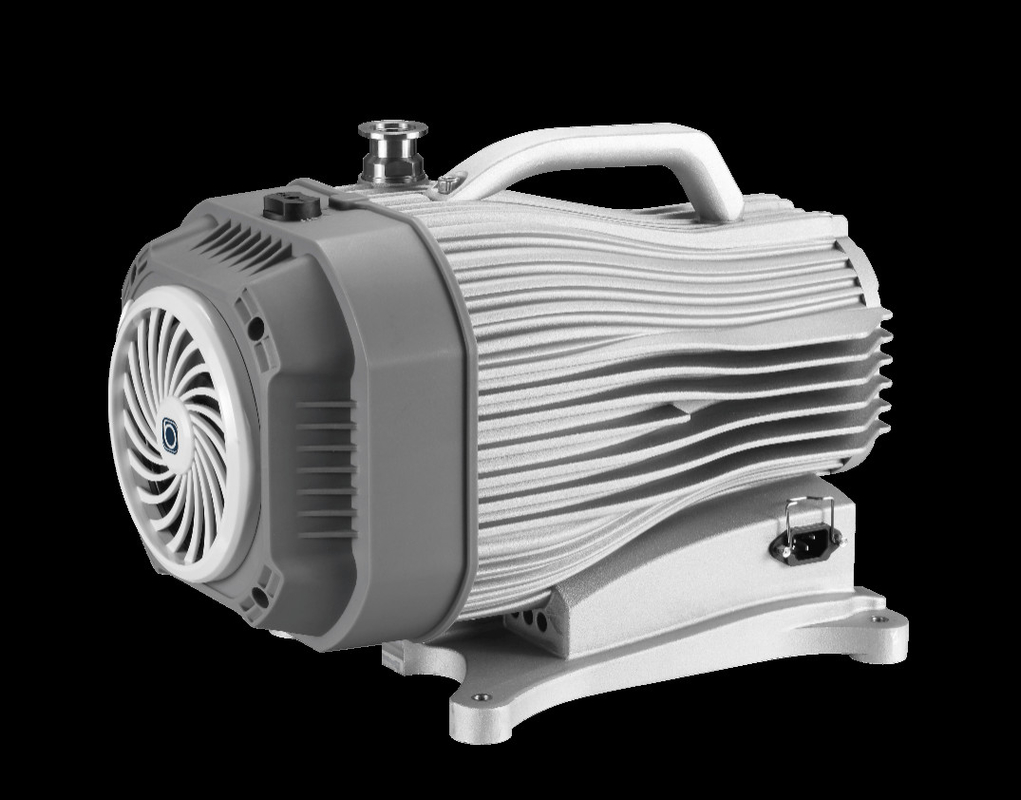

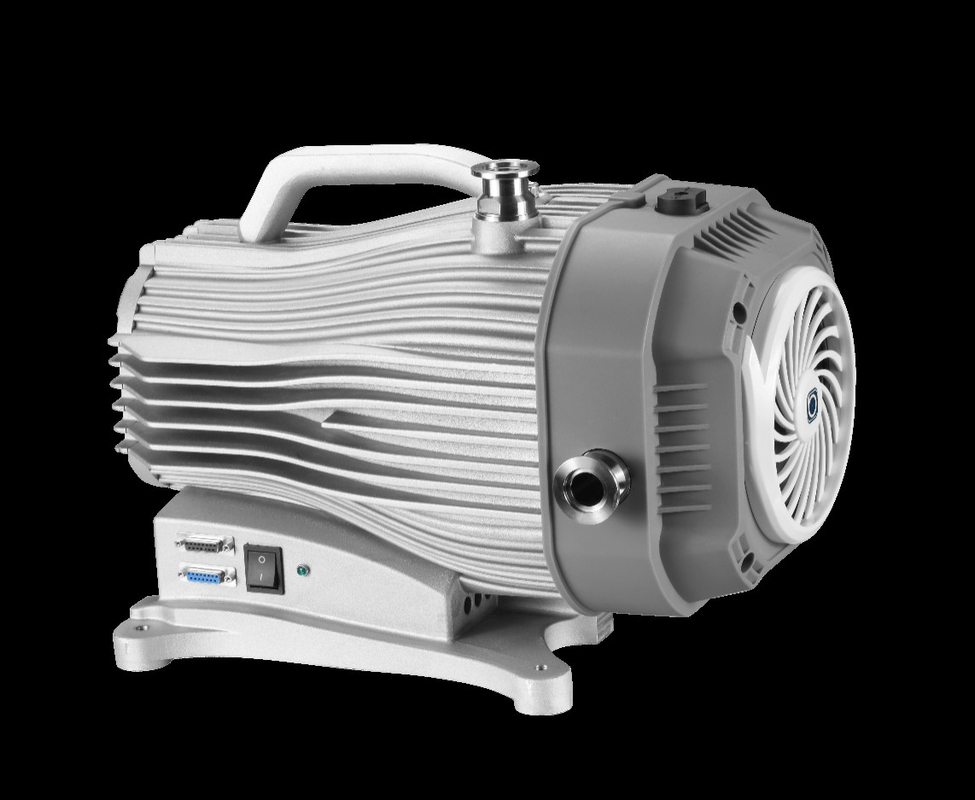

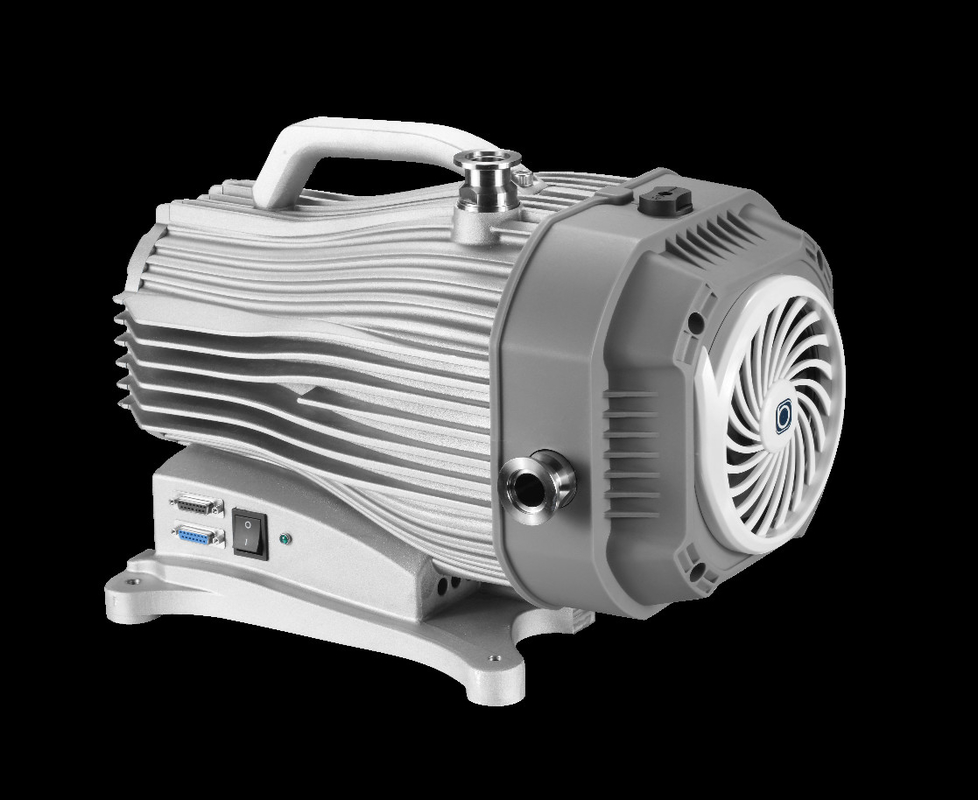

Painting Surface Air Cooled Oil Free Dry Scroll Vacuum Pump 16m3/h

Place of Origin China
Brand Name BSC
Certification CE
Model Number IDSP16
Minimum Order Quantity 1 set
Price Negotiate
Packaging Details wooden box
Delivery Time 5-30 days
Payment Terms T/T
Supply Ability 200 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Ultimate Vacuum 0.008mbar (0.8Pa) Color Blue/Grey
Speed 4L/s (16m3/h) Operating Temp. 5~40℃
Dimensions 430*274*313mm Surface Painting
Weight 29kg Cooling Method Air Cooling
High Light

Oil Free Dry Scroll Vacuum Pump


Dry Scroll Vacuum Pump 16m3/h


Painting Air Cooled Scroll Vacuum Pump

Leave a Message
Product Description

16 m³/h Dry Scroll Vacuum Pump IDSP16, Sky Blue, Air cooling, Oil-Free





Scroll pump is a new kind of oil-free mechanical pump with features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, quiet operation make IDSP the ultimate dry choice. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.



​Technical Data


Model IDAP16
Nominal rotational speed rpm 1800
Displacement m³h-1 16
Motor power W


Ultimate Vacuum mbar 0.008
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 54
Inlet flange - KF25
Exhaust flange - KF25
Max water vapour pumping rate gh-1 268
Leak tightness mbar ls-1 <1×10-6
Weight kg 29
Cooling Method - Air-cooled


Performance Curve

Painting Surface Air Cooled Oil Free Dry Scroll Vacuum Pump 16m3/h 0






Painting Surface Air Cooled Oil Free Dry Scroll Vacuum Pump 16m3/h 1





  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)


Painting Surface Air Cooled Oil Free Dry Scroll Vacuum Pump 16m3/h 2
