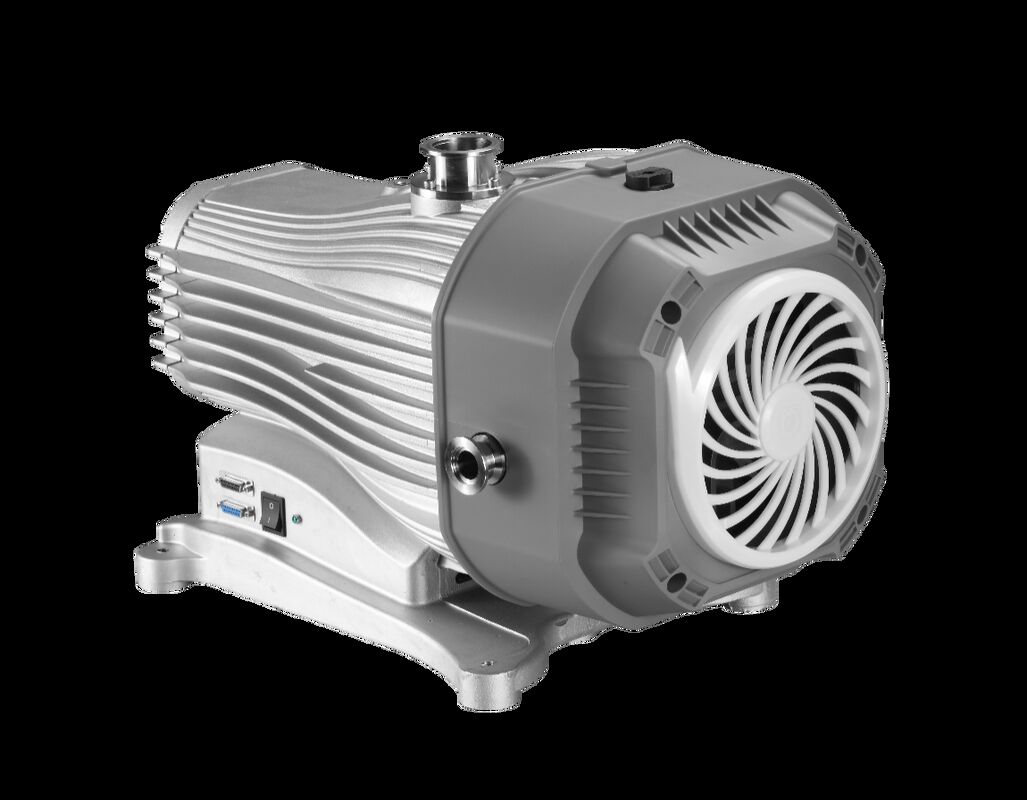

35m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ultimate Vacuum | 0.01mbar (1Pa) | Color | Sky Blue/Grey |
|---|---|---|---|
| Speed | 10.5L/s | Material | Cast Iron |
| Operating Temp. | 10~40℃ | Dimensions | 574*335*368 Mm |
| Surface | Painting | Weight | 56kg |
| Input Voltage | 1phase 100-120/200-240V | Application | Laboratory, Industrial, Semiconductor, Medical, Research |
| Cooling Method | Air-cooled | Operating Temp | 10~40℃ |
| Inlet Connection | KF16 | Outlet Connection | KF25 |
| Power Supply | 110V/220V, 50/60Hz | Pumping Speed | 35m3/h |
| Type | Dry Scroll Vacuum Pump | Ultimate Pressure | 10-3 Mbar |
| High Light | Air Cooled Scroll Vacuum Pump,Mechanical Dry Scroll Vacuum Pump,36m3/H Oil Free Dry Scroll Pump |
||
Product Description

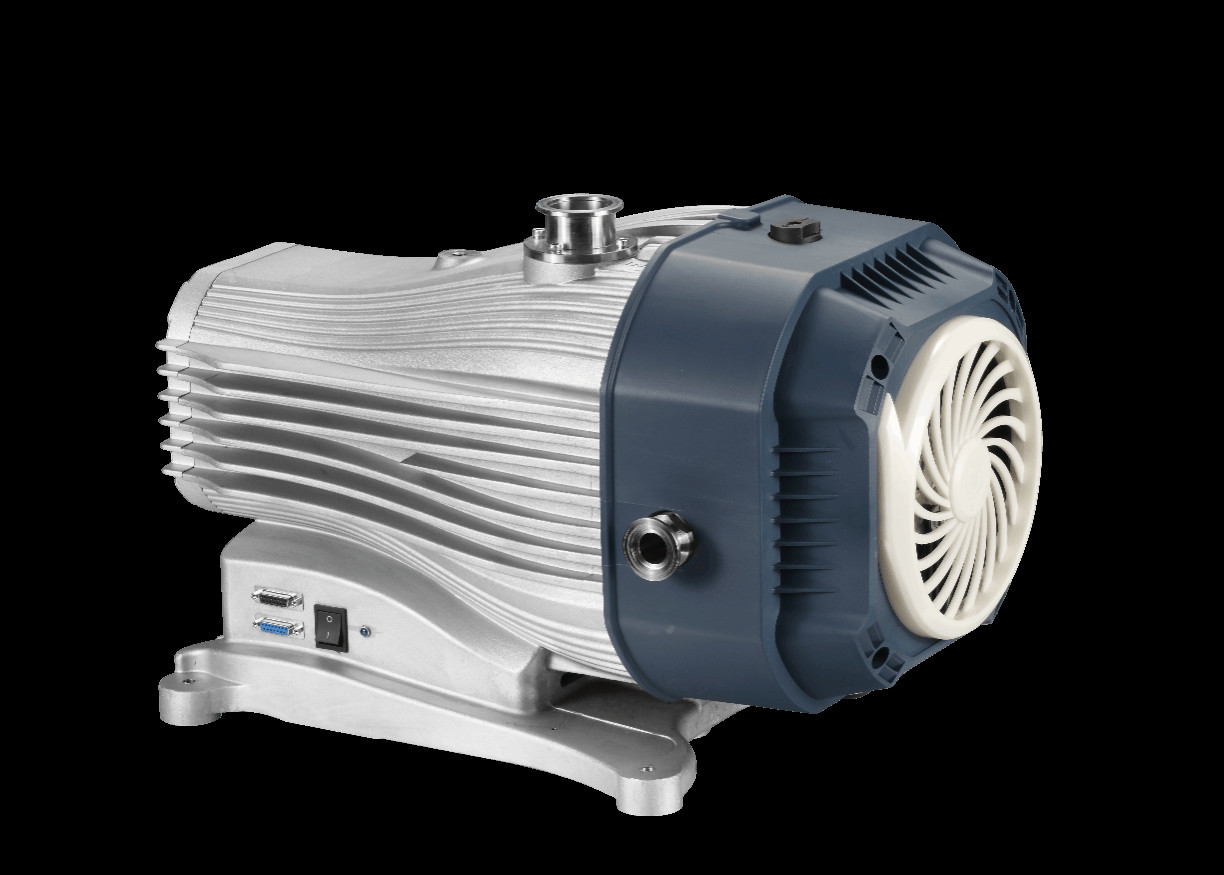

35 m³/h Dry Scroll Vacuum Pump IDSP36 , Sky Blue Air cooled Oil-Free
Description
Scroll pump is a new kind of oil-free mechanical pump with features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, quiet operation make IDSP the ultimate dry choice. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.
Technical Data
| Model | IDSP36 | |
| Nominal rotational speed | rpm | 1800 |
| Displacement | m³h-1 | 35 |
| Motor power | W |
1100 |
| Ultimate Vacuum | mbar | 0.01 |
| Voltage input | V | 1-ph, 100-120/200-240 |
| Noise level | dB (A) | 56 |
| Inlet flange | - | KF40 |
| Exhaust flange | - | KF25 |
| Max water vapour pumping rate | gh-1 | 200 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 56 |
| Cooling Method | - | Air cooled |
Performance Curve
Application
- Electron microscopy
- High energy physics
- Mass spectrometry
- Glove box
- Beam welding/laser welding
- Space simulation
- Coating(PVD/CVD)
