| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | SRV300B |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | wooden box |
| Delivery Time: | 5-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Surface: | Painting | Color: | RAL 7047, Black |
|---|---|---|---|
| Pumping Rate: | 240m3/h 50hz | Oil Need: | 9~12L |
| Noise Level: | 74 | Motor Power: | 5.5kW |
| Normal Rotational Speed: | 1450 50Hz | ||
| High Light: | Rotary Vane Oil Lubricated Pump,Single Stage Rotary Vane Vacuum Pump,Vane Vacuum Pump 300m3/H |
||

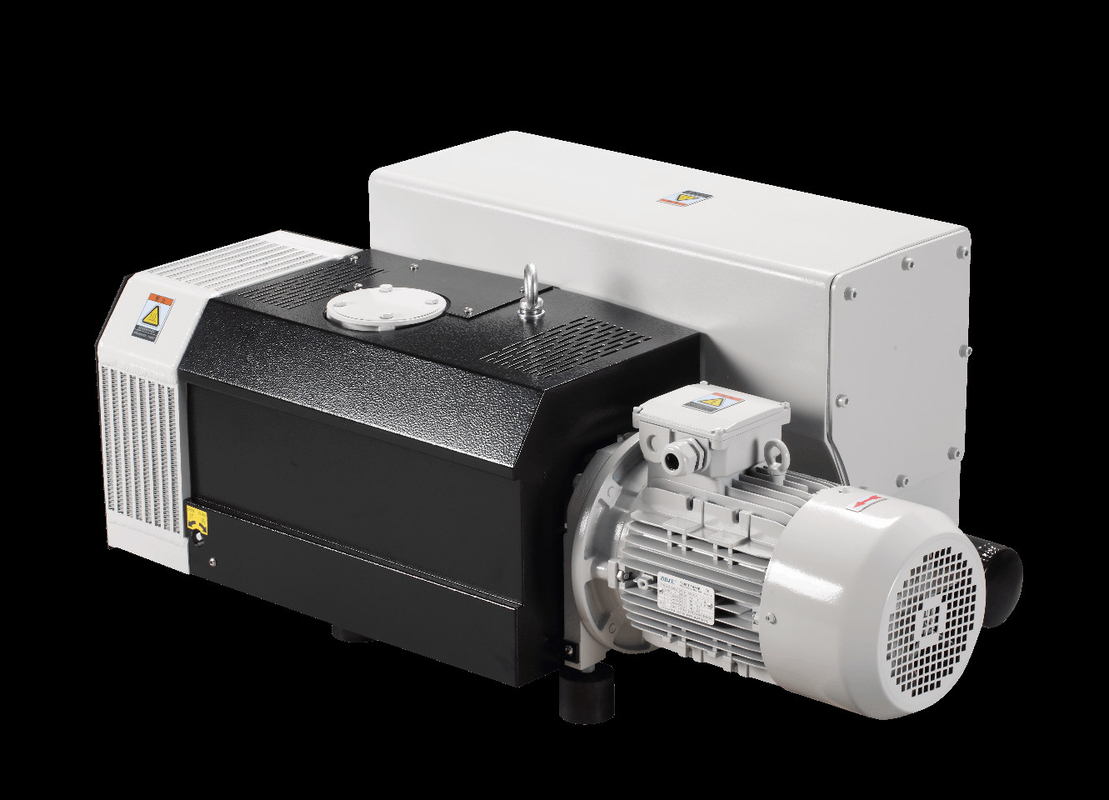

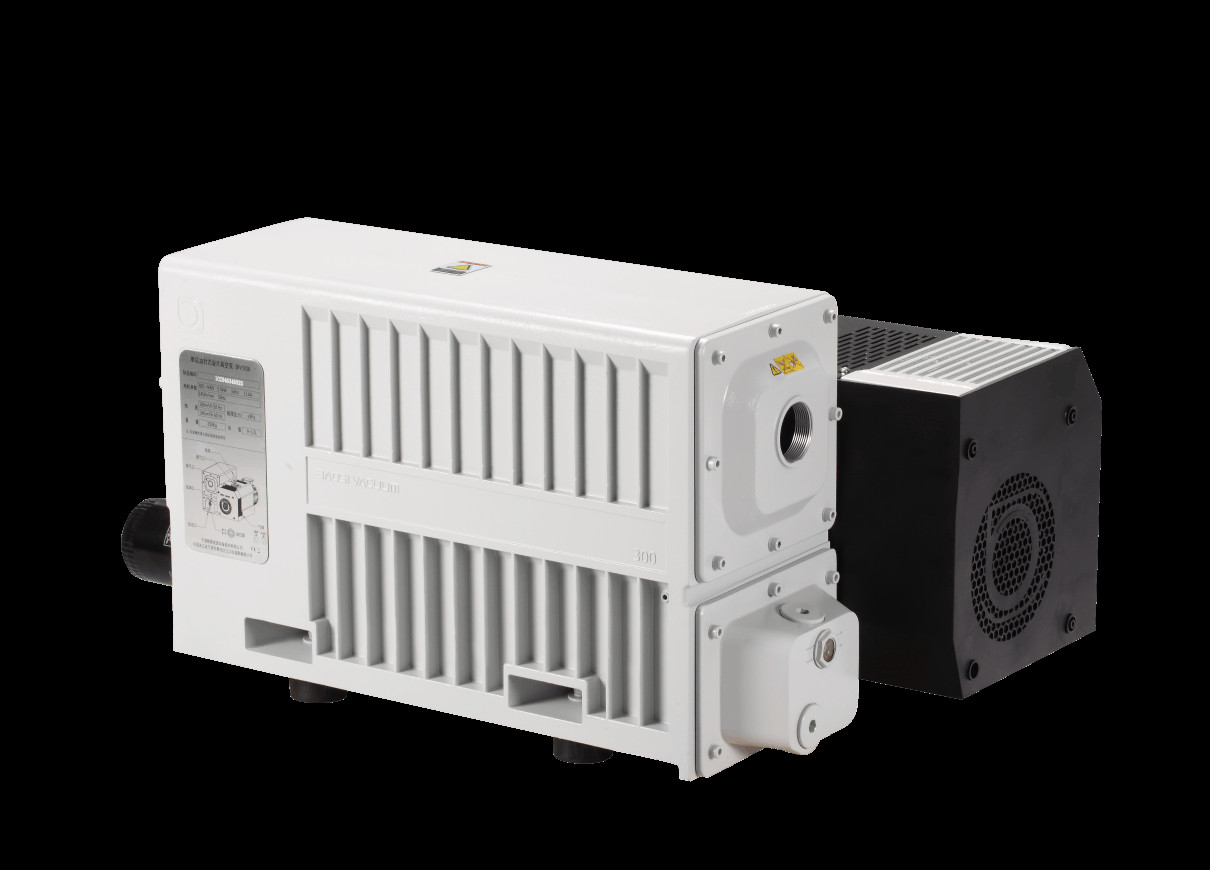

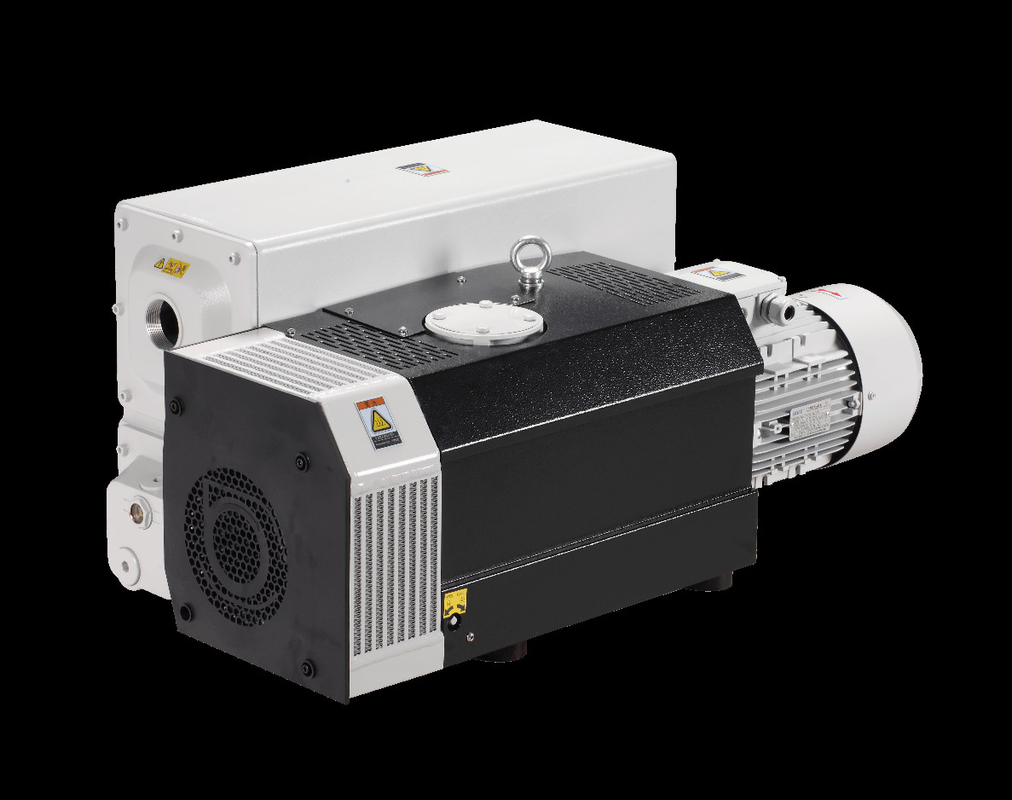

300m3/h High Pumping Speed Single-Stage Oil Sealed Rotary Vane Vacuum Pump SRV300B
High pumping speed to maximize your productivity and performance
Technical Data
| Units | SRV300B | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 240/4000 |
| 60 Hz | 290/4833 | ||
| Inlet | VG80 | ||
| Outlet | VG50 | ||
| Oil Needs | liter | 23~28 | |
| Noise Level | dB | 75 | |
| Ultimate Vacuum | Without gas ballast | Pa/ mbar | 8/8×10-2 |
Application
Vacuum metallurgy process
Thin-film coating technologies
Pharmaceutical freeze-drying
Optical coating
Performance Curve
Dimensions
SRV300B
