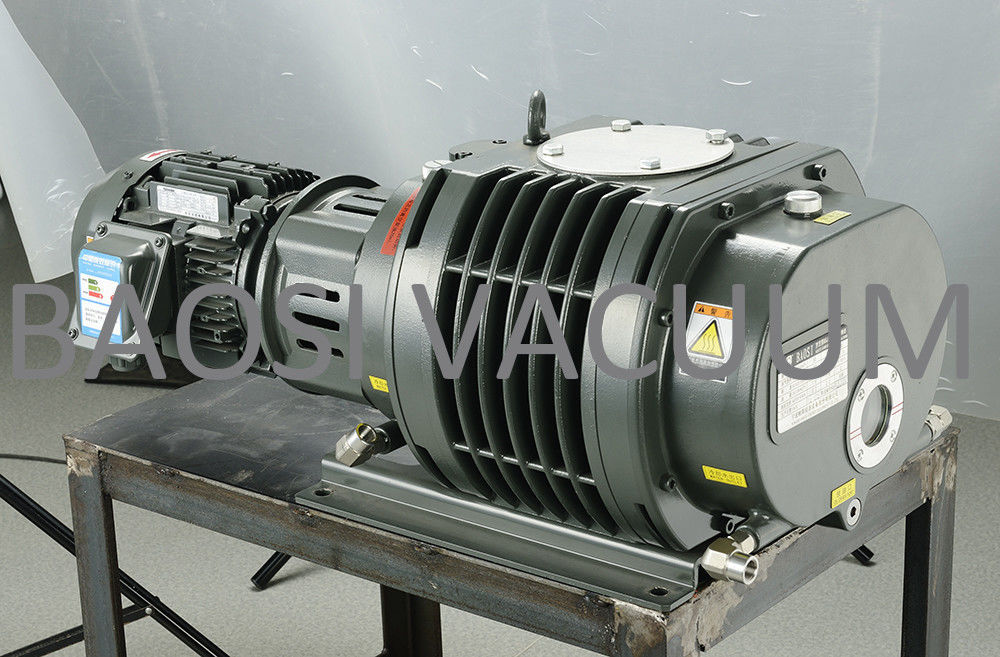

BSJ150L 150 L/s 50Hz 3HP Booster Vacuum Pump , Aluminium Alloy Made Vacuum Booster Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminium Alloy | Motor Power | 3hp |
|---|---|---|---|
| Voltage | 380,440V | Pumping Rate(50hz) | 500 M3/h (8330L/min) |
| Pumping Rate(60hz) | 600 M³/h (10000L/min) | G.W. | 95kgs |
| N.W. | 82kgs | Meas. | 102*50*50cm |
| High Light | roots blower vacuum pump,mechanical booster vacuum pump |
||
Product Description
Whole Aluminium Alloy Made 150L/s 50Hz 3hp Army Green Booster Pump,Mechanical Roots Pump BSJ150L
Description :
We offer you a comprehensive consultationservice.
Only the vacuum technology combined with application experience can find the right solution.
Characteristics:
- Special shaft seal is used to achieve the long stable running without oil leakage.
- The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
- Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
- Compact structure,light weight and small volume .
Technical Parameter :
| Model | Units | BSJ150L | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 500/8330 |
| 60 Hz | 600/10000 | ||
| Max allowed differential pressure | 50 Hz | Pa | 7.3x103 |
| 60Hz | Pa | 6.0x103 | |
| Max Inlet Pressure | 50Hz | Pa | 1.3x103 |
| 60Hz | Pa | 1.1x103 | |
|
Ultimate Vacuum
|
mbar |
4×10-4
|
|
| Motor Power | kW(hp) | 2.2 (3.0) | |
| Inlet | -- | VG80 | |
| Outlet | -- | VF80 | |
| Flow Rate | L/min | 2 | |
| MPa | 0.1 | ||
| Water Temp. | 5~30 | ||
| Oil Need | L | 1.6 | |
| Ambient Temp. | ℃ | 5~40 | |
| Vacuum Pump Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.
Performance Curve:
Dimensions:
Applications
- Leak testing systems
- Vacuum Coating
- Semiconductor production
- Vacuum Furnace
- Chemistry
- Electric Power Engineering
- Machinofacture
- Optical Filming
- Solar energy
- Analysis and laboratory
