| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | BSJ600L |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Material: | Aluminium Alloy | Motor Power: | 7.5hp |
|---|---|---|---|
| Voltage: | 380,440V | Pumping Rate(50hz): | 2000 M³/h (33330L/min) |
| Pumping Rate(60hz): | 2400 M³/h (40000L/min) | G.W.: | 248kgs |
| N.W.: | 227kgs | Meas.: | 127*66*72cm |
| High Light: | vacuum booster pump,mechanical booster vacuum pump |
||

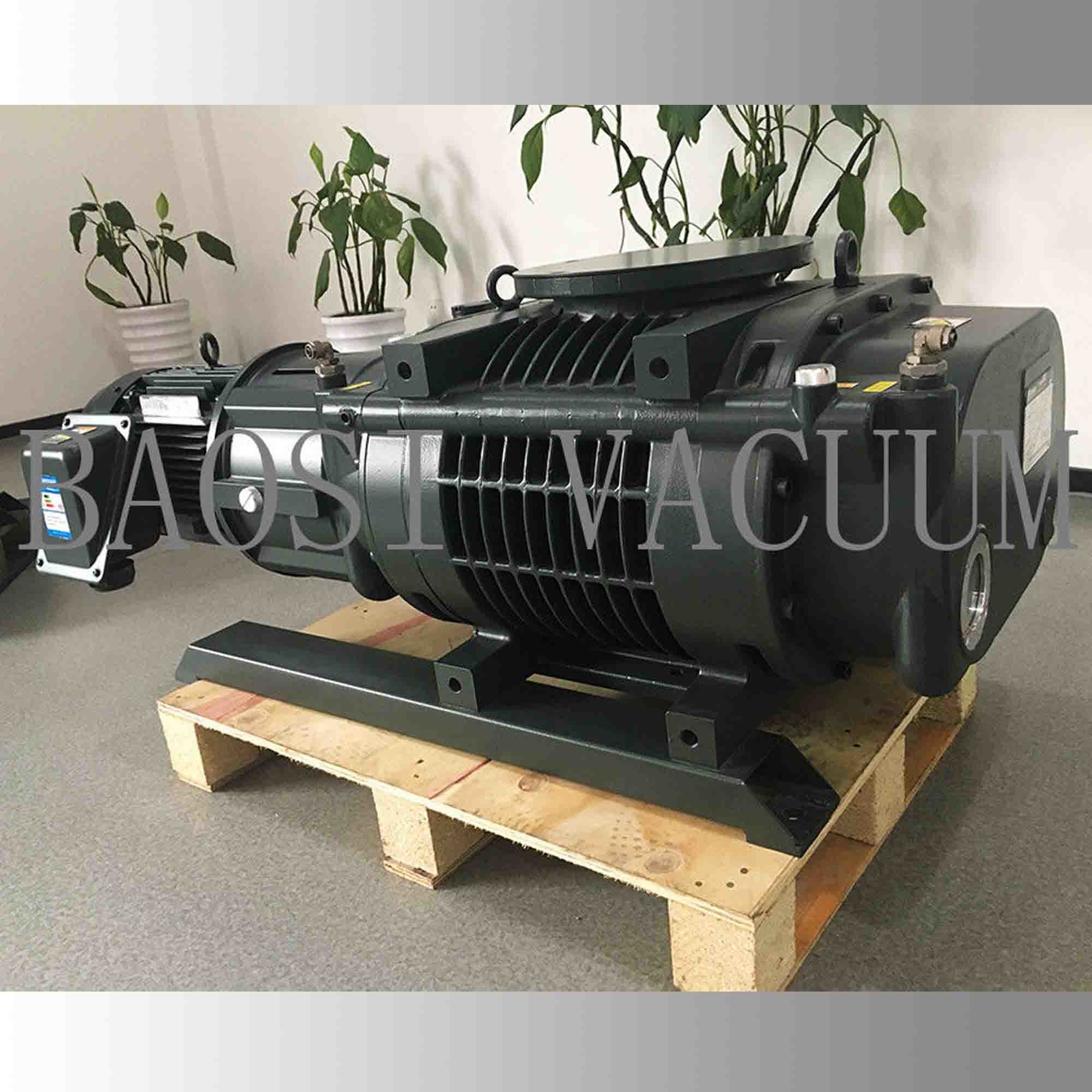

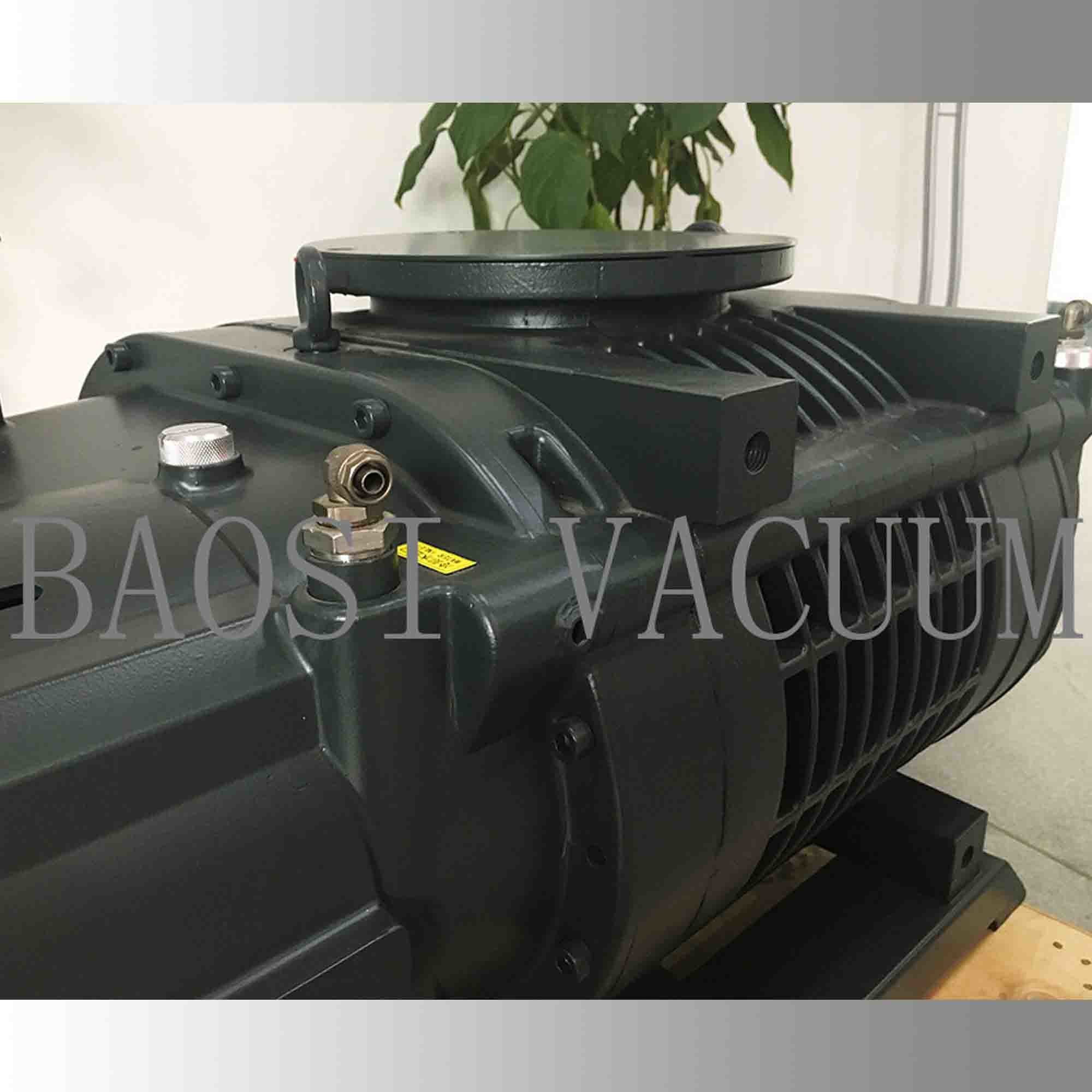

Whole Aluminium Alloy Made 600L/s 50Hz 5hp Army Green Booster Pump, Mechanical Roots Pump BSJ600L
Description :
We offer you a comprehensive consultationservice.
Only the vacuum technology combined with application experience can find the right solution.
Characteristics:
Technical Parameter :
| Model | Units | BSJ600L | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 2000/33330 |
| 60 Hz | 2400/40000 | ||
| Max allowed differential pressure | 50 Hz | Pa | 5.6x103 |
| 60Hz | Pa | 4.7x103 | |
| Max Inlet Pressure | 50Hz | Pa | 8.0x103 |
| 60Hz | Pa | 6.7x103 | |
|
Ultimate Vacuum
|
mbar |
4×10-4
|
|
| Motor Voltage | v | 380V~440V | |
| Motor Power | kW(hp) | 5.0 (7.5) | |
| Inlet | -- | VG200 | |
| Outlet | -- | VF200 | |
| Flow Rate | L/min | 3 | |
| MPa | 0.1 | ||
| Water Temp. | 5~30 | ||
| Oil Need | L | 4.0 | |
| Ambient Temp. | ℃ | 5~40 | |
| Vacuum Pump Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.
Performance Curve:
Dimensions:
Applications
It can be matched with backing pump used in Leak testing systems,Vacuum Coating,Semiconductor production,Vacuum Furnace,Chemistry ,Electric Power Engineering,Machinofacture,
Optical Filming,Solar energy,Analysis and laboratory and other so many fields.
We provide you with individual support,we train you and we offer 24/7 service worldwide.
