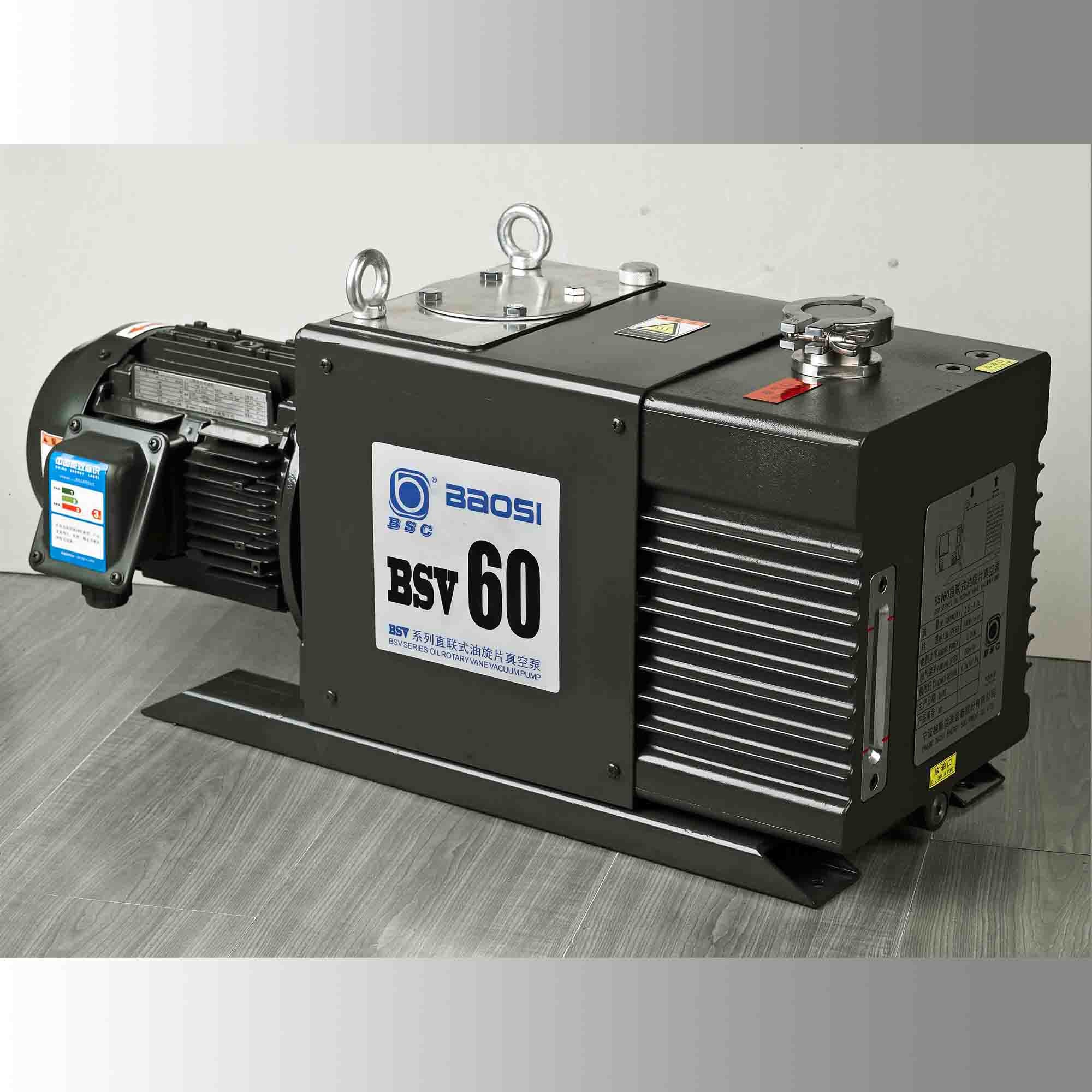

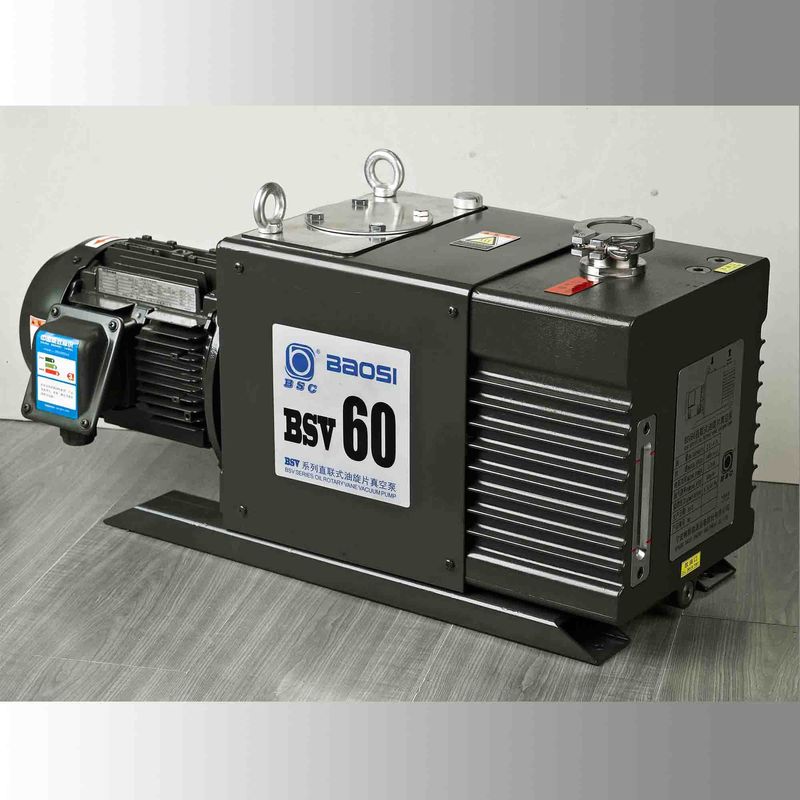

High Performance Vane Type Vacuum Pump Painting Surface 0.5 Pa Ultimate Vacuum

  • High Performance Vane Type Vacuum Pump Painting Surface 0.5 Pa Ultimate Vacuum
Place of Origin China
Brand Name BSC
Certification CE
Model Number BSV60
Minimum Order Quantity 1 set
Price Negotiate
Packaging Details wooden box
Delivery Time 5-10 days
Payment Terms T/T
Supply Ability 1000 sets per month
Product Details
Surface Painting Color Army Green
Speed 60 CBM/h Ultimate Vacuum 0.5 Pa
Noise Level 65 DB(A) Product Name Rotary Vacuum Pump
High Light

mechanical vacuum pump

,

rotary vacuum pump
Leave a Message
Product Description

BSV60 60m3/h Double Stage Oil Sealed Rotary Vane Vacuum Pump



When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.



​Technical Data

  Units BSV90
Pumping Rate 50 Hz m³h-1 / Lmin-1 60/1000
60 Hz 72/1200
Ultimate Vacuum Without gas ballast Pa/ mbar 0.5/5×10-3
With gas ballast 2/2×10-2
Inlet KF40
Outlet KF40
Oil Needs litre 4
Noise Level dB 65



Performance Curve

High Performance Vane Type Vacuum Pump Painting Surface 0.5 Pa Ultimate Vacuum 0



Dimensions



BSV60［90］



High Performance Vane Type Vacuum Pump Painting Surface 0.5 Pa Ultimate Vacuum 1





Application



Vacuum metallurgy

Thin film coating

Freeze drying
