| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | BSV60 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Surface: | Painting | Color: | Army Green |
|---|---|---|---|
| Speed: | 60 M³/h | Ultimate Vacuum: | 0.5 Pa |
| Noise Level: | 65 DB(A) | Product Name: | Rotary Vacuum Pump |
| Weight: | 87kgs | ||
| High Light: | metallurgy electric rotary vane pump,60CBM/h electric rotary vane pump,metallurgy oil rotary vacuum pump |
||

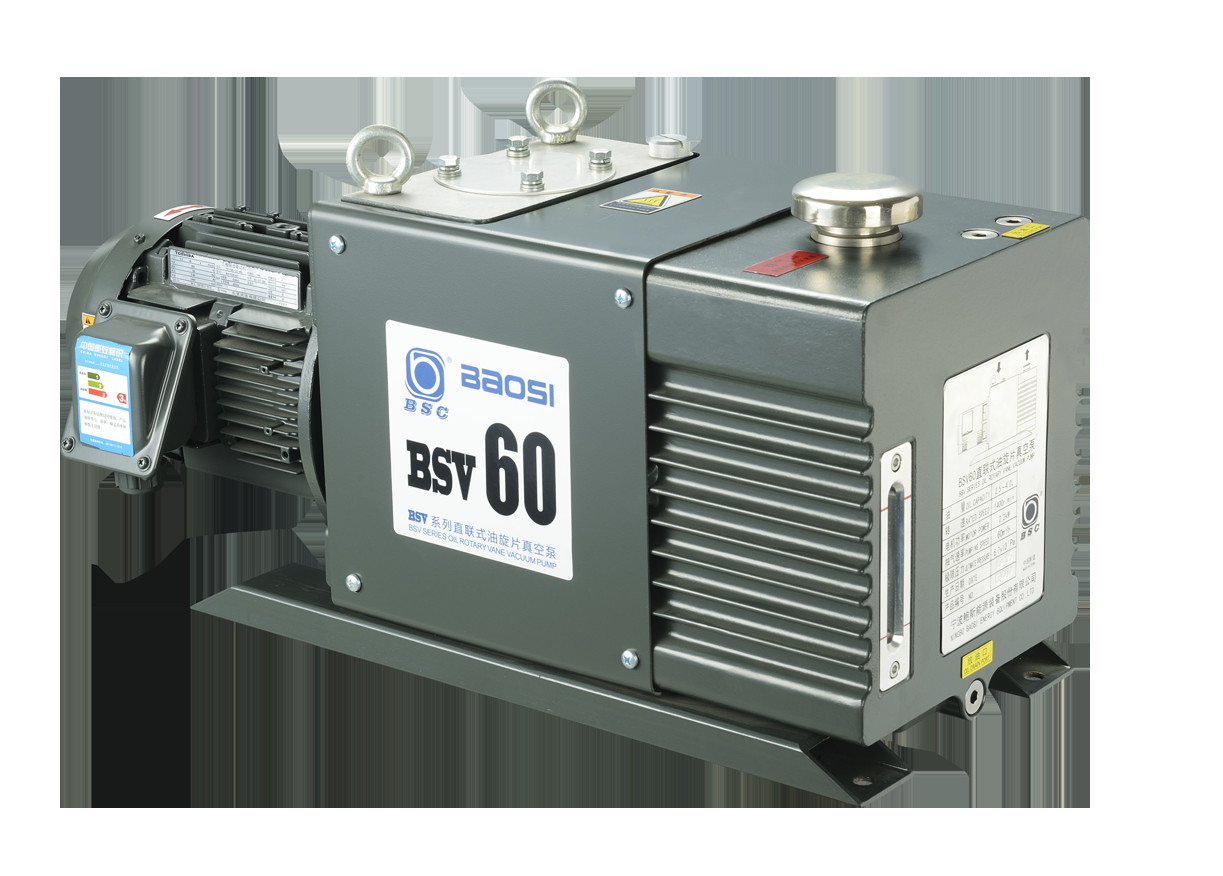

BSV60 60m3/h Double Stage Oil Sealed Rotary Vane Vacuum Pump
When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.
Technical Data
| Units | BSV60 | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 60/1000 |
| 60 Hz | 72/1200 | ||
| Ultimate Vacuum | Without gas ballast | Pa/ mbar | 0.5/5×10-3 |
| With gas ballast | 2/2×10-2 | ||
| Inlet | VG50 | ||
| Outlet | KF40 | ||
| Oil Needs | litre | 2.5~4.2 | |
| Noise Level | dB | 65 | |
Performance Curve
Dimensions
BSV60［90］
Application
Vacuum metallurgy
Thin film coating
Freeze drying
Home Appliance
Optical Coating
