| Place of Origin: | China |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | DRV3 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | carton |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per month |
| Surface: | Powder Coating | Color: | White |
|---|---|---|---|
| Speed: | 3.6 Cbm/h | Ultimate Vacuum: | 0.5 Pa |
| Noise Level: | 54 DB(A) | Motor Power: | 0.4 KW |
| Voltage: | 220/single Phase | ||
| High Light: | 3.6CBM/H dry rotary vane pump,single phase dry rotary vane pump,high speed rotary vane pump |
||

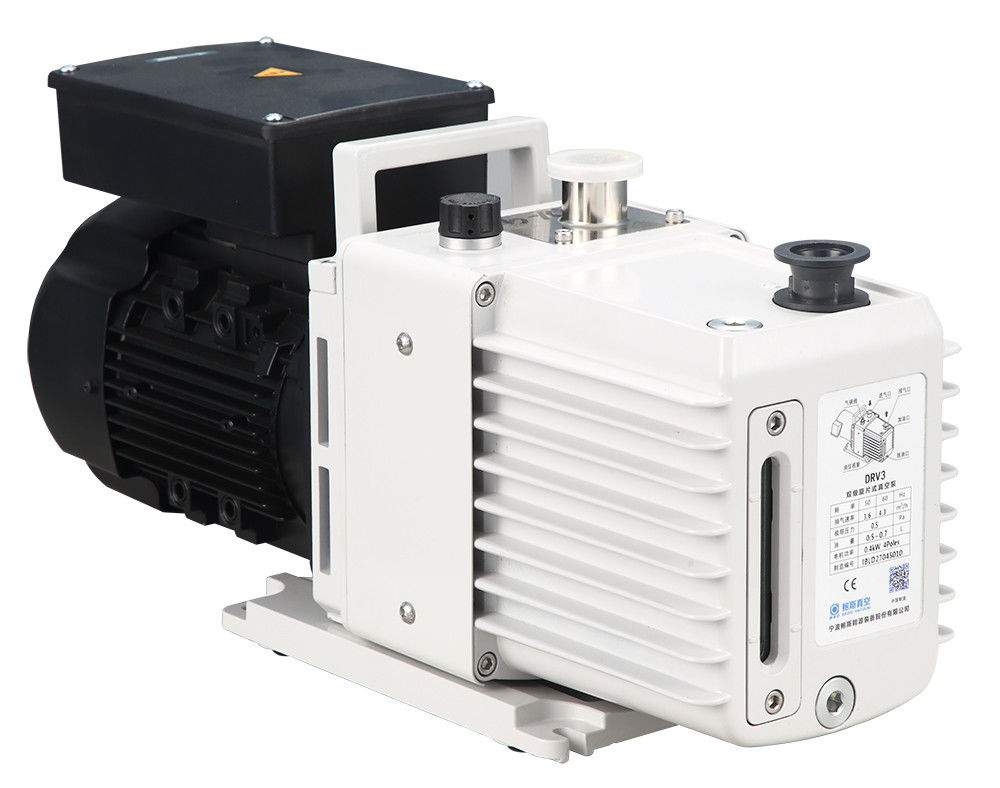

0.4 kW Double Stage Oil-lubricated Rotary Vane Vacuum Pump DRV3 with 1 L/s (3.6m³/h)
DRV3 is the high-speed two-stage oil-sealed rotary vane vacuum pump. It is a new concept out of conventional design to satisfy customers' needs.
Technical Data
| Units | DRV3 | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 3.6/60 |
| 60 Hz | 4.3/72 | ||
| Ultimate Vacuum | Without gas ballast | Pa/ mbar | 0.5/5×10-3 |
| With gas ballast | 5/5x10-2 | ||
| Inlet | KF25 | ||
| Outlet | KF25 | ||
| Oil Needs | liter | 0.7 | |
| Noise Level | dB | 54 | |
| Weight | kgs | 22.5 | |
Performance Curve
Dimensions
DRV3 ［5］
Application
Vacuum metallurgy
Thin-film coating
Freeze drying
Lab instrument
Glove box
Refrigerator
