| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BSC |
| Certification: | CE |
| Model Number: | GFF1200 |
| Minimum Order Quantity: | 1 |
| Price: | 1 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7 working days |
| Supply Ability: | 500 Units per month |
| Cooling Method: | Water Cooled | Pumping Speed: | 1200 L/s |
|---|---|---|---|
| Ultimatre Pressure: | 8E-8 Pa | Run-up Time: | ≤5 Min |
| High Light: | turbo vacuum pump,high vacuum pump |
||

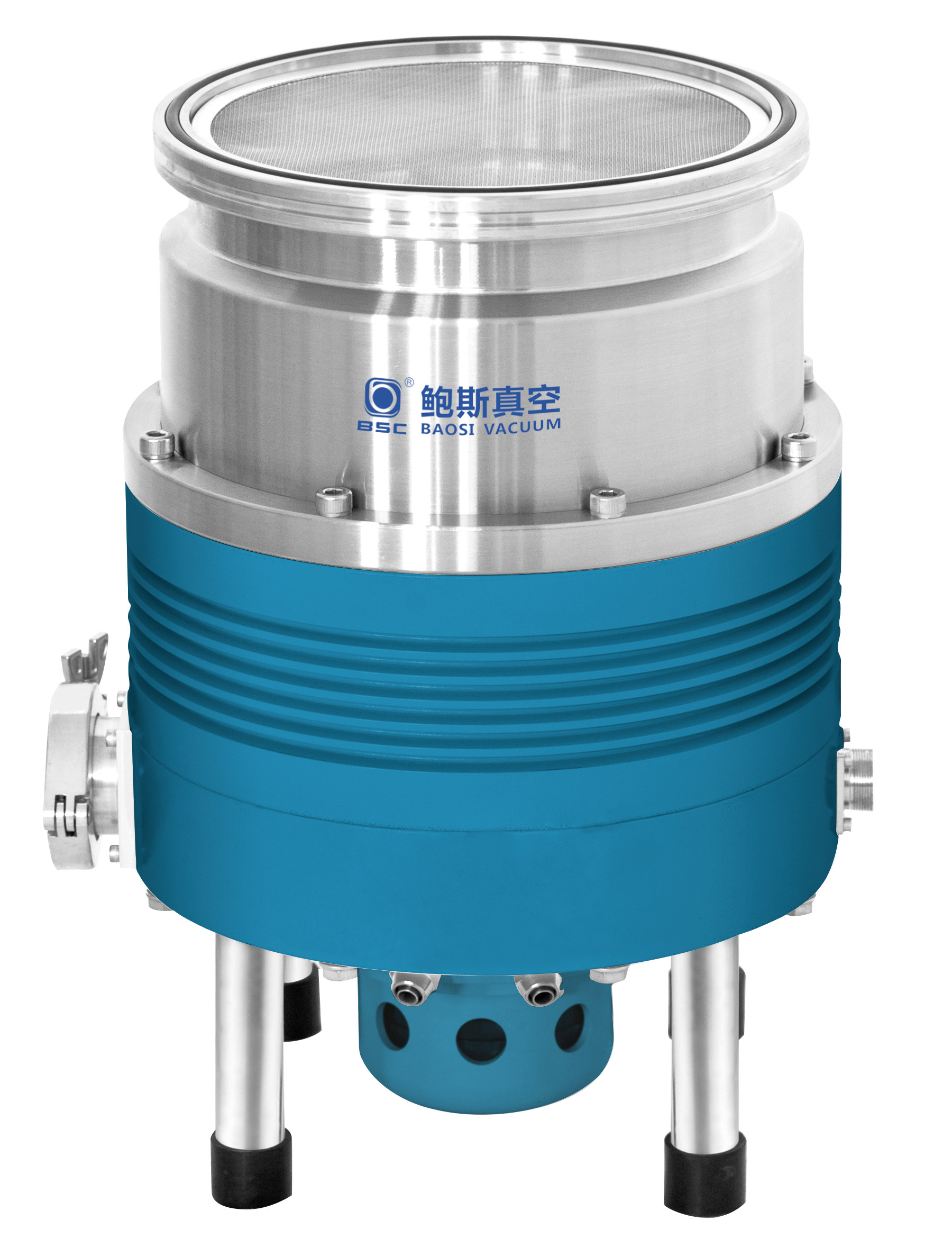

BAOSI VACUUM GFF1200 Water-cooled Hybrid Molecular Vacuum Pump
TECHNICAL PARAMETER
| Model | GFF1200 | ||
| Inlet flange | - | LF200 | CF200 |
| Outlet flange | - | KF40 | |
| Pumping speed | L/s | 1200 | |
| Compression ratio N2/H2 | - | 1×109/8×103 | |
| Ultimate pressure | Pa | 5×10-7 | 8×10-8 |
| Rotation speed | rpm | 24000 | |
| Run-up time | min | ≤5 | |
| Vibration | μm | ≤0.1 | |
| Forevacuum pump speed | L/s | 8-15 | |
| Cooling water temperature | ≤20 | ||
| Cooling water flow | L/s | 1 | |
| Heater power | W | ＜600 | |
| Heater voltage | V | AC220 | |
| Installation direction | - | Vertical ±5o | |
| Weight | kg | 34 | |
feature:
* high vacuum pumping efficiency, high vacuum degree, long service life;
* high performance in pumping vapor;
* low vibration and noise;
* fashional appearance design;
* adopting new matierals and technics;
* inner-built auto oil check valve;
* inner-built circulation system for pressure oil;
* convenient, multi-step gas balllast valve control;
* simpale mechanism, easy opeation and maintenance;
